SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2310 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
RTQ2106GCP-QA Frequently Asked Questions (FAQs)
Richtek provides a recommended PCB layout in their application note ANI03, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. Richtek recommends using a low-ESR capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the input voltage. Refer to the application note ANI04 for more details.
The enable pin (EN) has a maximum allowed voltage of 6V, which is not explicitly stated in the datasheet. Exceeding this voltage may damage the device.
To ensure stability and reliability, follow the recommended layout and component selection guidelines, and make sure to decouple the input and output with suitable capacitors. Additionally, ensure that the device is operated within its specified temperature range and that the input voltage is within the recommended range.
The typical dropout voltage of the RTQ2106GCP-QA is around 0.5V to 1.5V, depending on the output current and input voltage. This information is not explicitly stated in the datasheet, but can be inferred from the device's characteristics and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ2106GCP-QA Overview

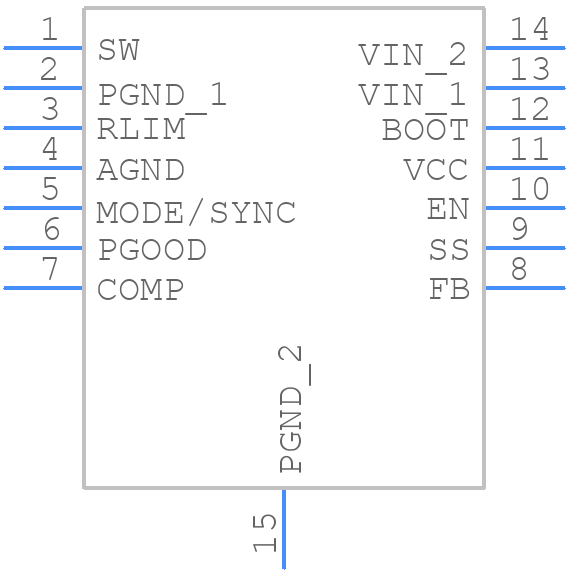

Use the download button to access the RTQ2106GCP-QA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTQ21,
or try a keyword search, such as Switching Regulator or Controllers
