Richtek provides a recommended PCB layout in their application note AND9231, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and desired ripple current. Richtek recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the maximum input voltage.
The EN pin is a digital input and should not exceed the maximum rating of 6V. Applying a voltage higher than 6V may damage the device. It's recommended to use a voltage divider or a buffer circuit to ensure the EN pin voltage remains within the specified range.
The RTQ2531WGQW is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow Richtek's thermal design guidelines and consider derating the device's output current and voltage to ensure reliable operation in high-temperature environments.
Richtek provides a troubleshooting guide in their application note AND9231, which covers common issues such as output voltage regulation, oscillation, and overcurrent protection. It's recommended to follow the guide and check the device's input voltage, output voltage, and current, as well as the PCB layout and component values, to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ2531WGQW Overview

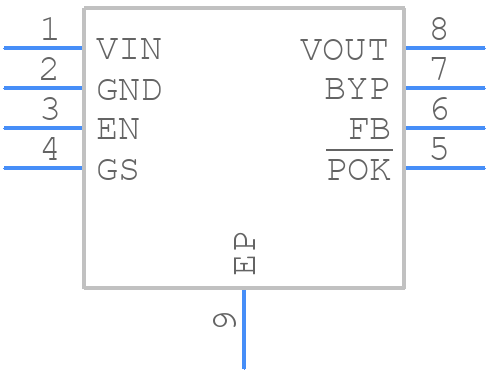

Use the download button to access the RTQ2531WGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTQ25,
or try a keyword search, such as Linear Regulator ICs
