RTQ2569-50GQW-QA - RICHTEK

Description: AEC-Q100 Grade 1 Qualified  Ultra low Quiescent Current 2A (typ.)  ±2% Output Accuracy  100mA Continuous Output Current  Operating Input Voltage : 3.5V to 36V  Low dropout voltage : 200mV at 10mA  Fixed Output Voltage : 2.5V to 12V with 0.1V Per Step  Current Limit Protection  Over-Temperature Protection  RoHS Compliant and Halogen Free

Download RTQ2569-50GQW-QA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

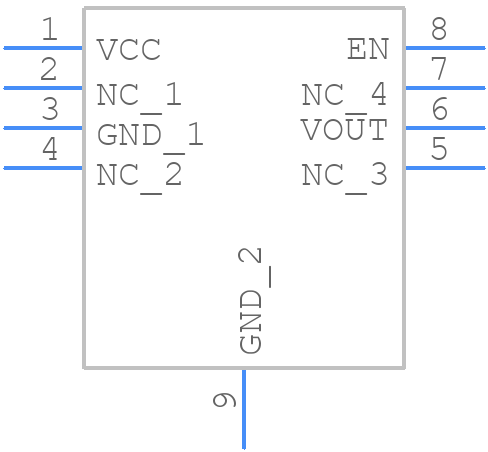

RTQ2569-50GQW-QA - RICHTEK - PCB symbol
