Richtek provides a recommended PCB layout in their application note ANI03, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output current, and ripple current requirements. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. A X5R or X7R dielectric is recommended for its stability over temperature.
According to Richtek's application note ANI03, the maximum output current derating for high ambient temperatures is 0.5A/°C above 50°C. This means that for every 1°C increase in ambient temperature above 50°C, the maximum output current should be reduced by 0.5A to ensure reliable operation.
While the RTQ2569-90GQW-QA is a high-quality regulator, it is not specifically designed for high-reliability or automotive applications. Richtek offers other products, such as the RTQ2569-90GQW-HA, which are designed for automotive and high-reliability applications and meet relevant industry standards, such as AEC-Q100.
Output voltage instability or oscillation issues can be caused by inadequate input decoupling, incorrect output capacitor selection, or poor PCB layout. Richtek recommends checking the input and output capacitor values, ensuring proper PCB layout, and adding additional decoupling capacitors if necessary. If the issue persists, consult Richtek's application notes or contact their technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ2569-90GQW-QA Overview

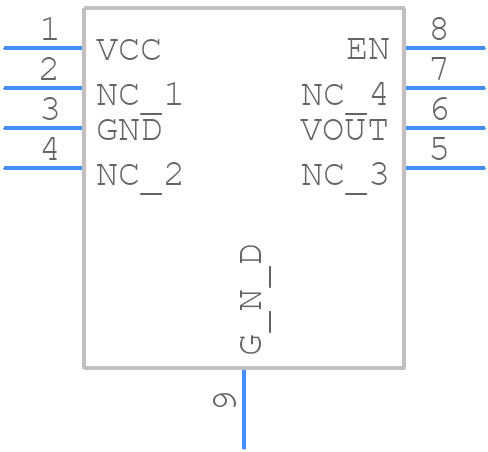

Use the download button to access the RTQ2569-90GQW-QA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTQ25,
or try a keyword search, such as Linear Regulator ICs
