Richtek provides a recommended PCB layout in their application note ANI-23, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Richtek recommends following the power-up sequence outlined in the datasheet, which includes applying a stable input voltage, waiting for the internal voltage regulator to settle, and then configuring the device through the I2C interface. Additionally, it's essential to ensure that the input voltage is within the specified range and that the device is properly decoupled.
While the datasheet doesn't specify a maximum capacitance, Richtek recommends using output capacitors with a capacitance value between 10uF to 22uF, with an ESR (Equivalent Series Resistance) of less than 1 ohm. Exceeding this value may affect the device's stability and performance.
Richtek suggests using a logic analyzer or oscilloscope to monitor the I2C bus signals, checking for proper signal levels, rise times, and clock frequencies. Additionally, ensure that the I2C bus is properly terminated, and that the device is properly addressed and configured.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Richtek recommends operating the device within a range of -20°C to 85°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ2943GQW-QA Overview

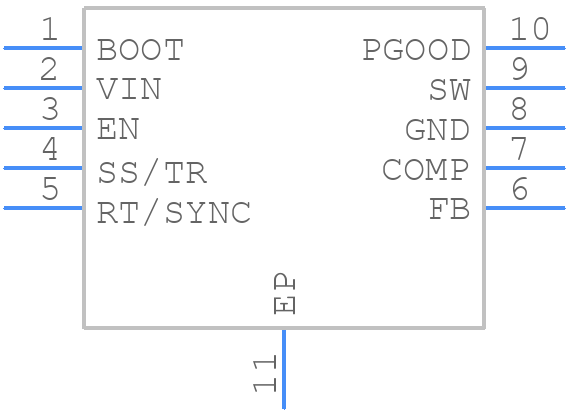

Use the download button to access the RTQ2943GQW-QA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTQ29,
or try a keyword search, such as Switching Regulator or Controllers
