A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R). Also, minimize the distance between the output capacitor and the device.
The maximum allowable ripple voltage is 10% of the input voltage. Exceeding this may affect the device's stability and performance.
Yes, but ensure that the ceramic capacitor is of high quality and has a low ESR (Equivalent Series Resistance) to minimize output voltage ripple.
Use an external current sense resistor and a fuse or a PTC (Positive Temperature Coefficient) thermistor to protect the device from overcurrent and short-circuit conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ2965GSP-QA Overview

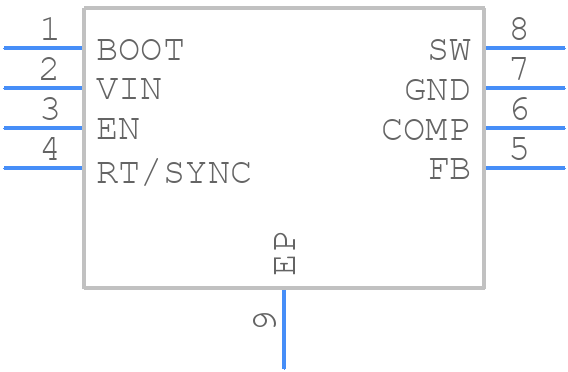

Use the download button to access the RTQ2965GSP-QA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTQ29,
or try a keyword search, such as Switching Regulator or Controllers
