- Part Number RTQ6362GSP
- Manufacturer RICHTEK
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
- Released Date Jul 23, 2021
- Last Modified Date Nov 23, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
RTQ6362GSP Details
-
Manufacturer Part Number:
RTQ6362GSP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
Analog IC - Other Type:
SWITCHING REGULATOR
RTQ6362GSP Frequently Asked Questions (FAQs)
-
Richtek provides a recommended PCB layout in their application note AND9231, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range, use a high-quality output capacitor with low ESR, and minimize the distance between the output capacitor and the RTQ6362GSP. Additionally, consider using a voltage reference capacitor with a low tolerance to improve accuracy.
-
Although not explicitly stated in the datasheet, Richtek recommends keeping the input voltage ripple below 1% of the nominal input voltage to ensure reliable operation and minimize the risk of oscillation or instability.
-
While the RTQ6362GSP is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation in high-temperature environments. Additionally, consult with Richtek's application engineers for specific guidance on high-temperature applications.
-
To troubleshoot oscillation or instability issues, check the input voltage, output capacitor, and PCB layout for any potential issues. Ensure that the input voltage is within the recommended range, and the output capacitor is of high quality with low ESR. Also, verify that the RTQ6362GSP is properly decoupled from the input voltage and that the PCB layout follows the recommended guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
RTQ6362GSP Overview

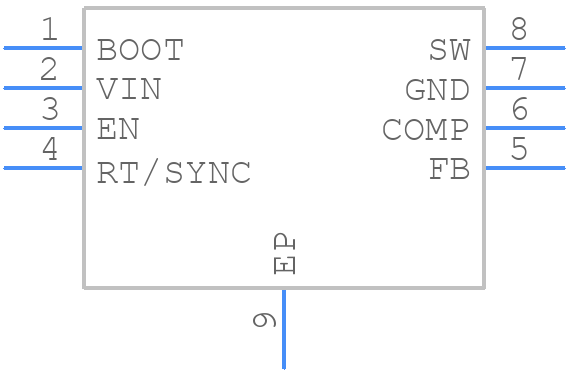

Use the download button to access the RTQ6362GSP schematic symbol, PCB footprint, and 3D model.
