RTX3-1AT-C024 - TE Connectivity

Description: SPST-NO Through Hole Latching Relay, 16 A, 24V dc For Use In General Purpose Applications

Download RTX3-1AT-C024 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

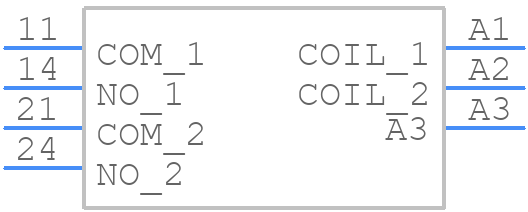

Symbol
RTX3-1AT-C024 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
RTX3-1AT-C024 - TE Connectivity PCB footprint - Other - Other - RTX3-1AT-C024-1
click to zoom
3D Models
RTX3-1AT-C024 - TE Connectivity - 3D model - Other - RTX3-1AT-C024-1
click to zoom

RTX3-1AT-C024 Details

  • Manufacturer Part Number:

    RTX3-1AT-C024

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    12.7 mm

  • Body Height:

    16 mm

  • Body Length or Diameter:

    29.1 mm

  • Coil Power:

    950 mW

  • Coil Resistance:

    610 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    250 V

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1250 Vrms

  • End Contact Material:

    TUNGSTEN

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    11 g

RTX3-1AT-C024 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in) to ensure secure connections.
  • Yes, the RTX3-1AT-C024 is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • Yes, the RTX3-1AT-C024 is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH, making it suitable for use in harsh environments.
  • The RTX3-1AT-C024 has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
  • While the RTX3-1AT-C024 is designed for 24 AWG wire, it can accommodate wire sizes ranging from 20 AWG to 26 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RTX3-1AT-C024 Overview

Use the download button to access the RTX3-1AT-C024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTX3-, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
