RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The RW-0515D is designed to meet UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure proper installation, wiring, and testing according to the datasheet and relevant safety standards to meet regulatory requirements.
RECOM Power Inc recommends using a low-ESR ceramic or film capacitor with a value of 10-22uF, depending on the input voltage and ripple requirements, to ensure stable operation and minimize input voltage ripple.
Use a multimeter to measure input and output voltages, currents, and temperatures. Check for proper wiring, input voltage range, and output load conditions. Consult the datasheet and RECOM Power Inc's application notes for troubleshooting guidelines.
The maximum allowed output capacitance is 47uF. Exceeding this value may cause instability or oscillations in the output voltage. Consult the datasheet and RECOM Power Inc's application notes for output capacitance selection guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RW-0515D Overview

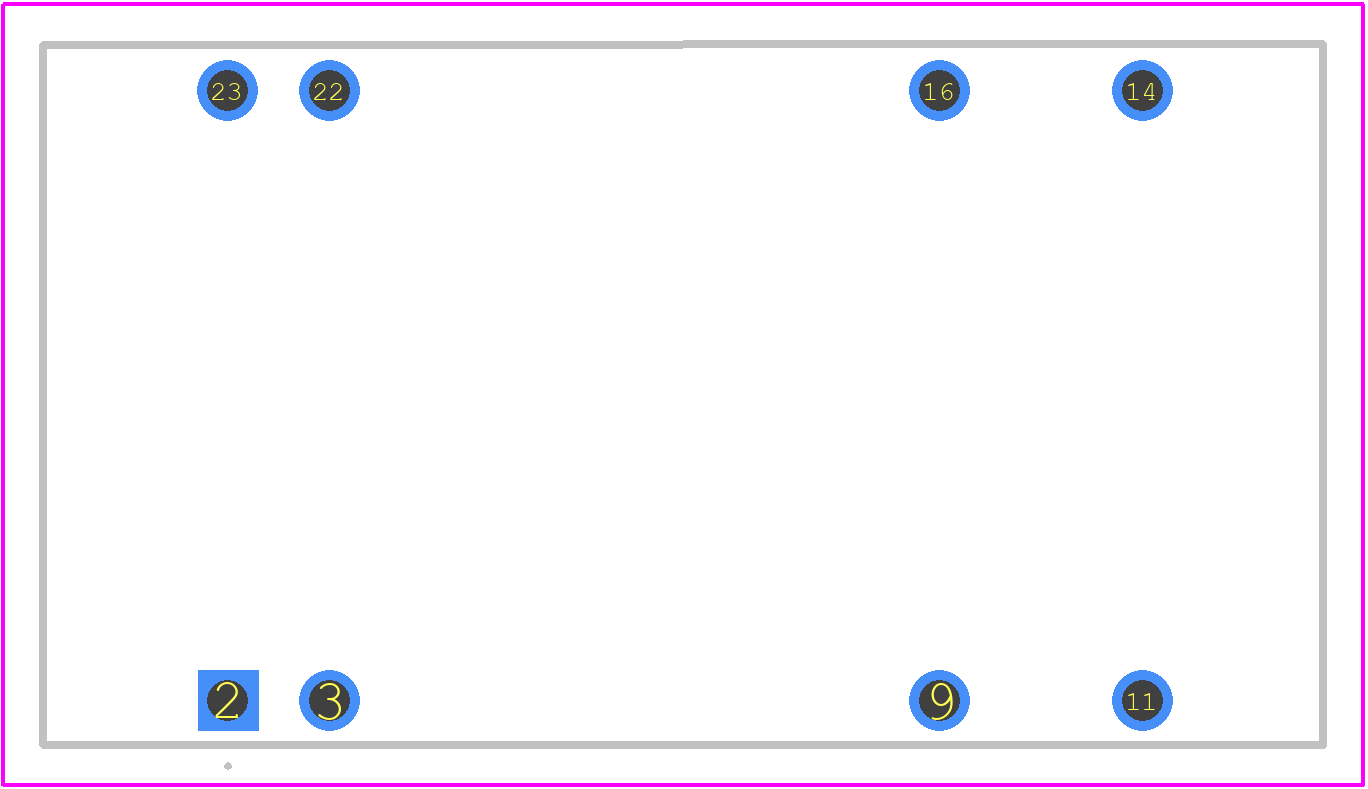

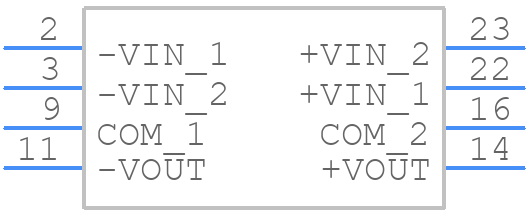

Use the download button to access the RW-0515D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RW-05,
or try a keyword search, such as Power Supply Modules
