RW-2415S footprint, schematic symbol and 3D model by RECOM Power

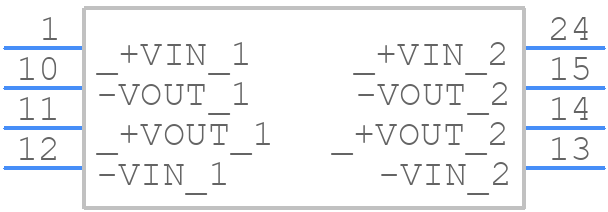

Symbol

click to zoom

PCB Footprints

RW-2415S - RECOM Power PCB footprint - Other - Other - RW-2415S-1

click to zoom

3D Models

RW-2415S - RECOM Power - 3D model - Other - RW-2415S-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RW-2415S
Part Number RW-2415S
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - RW-2415S-1
Released Date Nov 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RW-2415S Details

Manufacturer Part Number:
RW-2415S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-T8
Length:
32.26 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.3 V
Output Voltage-Min:
14.7 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Seated Height-Max:
7.5 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
3 W
Trim/Adjustable Output:
NO
Width:
14.73 mm

RW-2415S Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area (at least 1 oz) connected to the module's thermal pad, and multiple vias to dissipate heat effectively. A minimum of 10 mm clearance around the module is also recommended.
Yes, the RW-2415S is designed to withstand vibrations up to 10 G (10-2000 Hz) and shocks up to 50 G (11 ms, half-sine). However, it's recommended to consult with RECOM's application engineers for specific vibration and shock requirements.
RECOM recommends following the guidelines in the datasheet for proper PCB layout, component selection, and shielding. Additionally, ensure that the module is installed in a metal enclosure with proper grounding and that all cables are properly shielded and routed.
The maximum allowed capacitance for the output filter is 47 μF. Exceeding this value may affect the module's stability and performance.
Yes, the RW-2415S can be used in redundant or parallel configurations. However, it's essential to consult with RECOM's application engineers to ensure proper design and implementation to avoid any potential issues.

Trust Checks

Expert Contribution

System Verified

Community Approved

RW-2415S Overview

Use the download button to access the RW-2415S schematic symbol, PCB footprint, and 3D model.
