RW1S0CKR010FE - Ohmite

Description: Current Sense Resistors - SMD 1watt .01ohm 1% SMD Wirewound

Download RW1S0CKR010FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

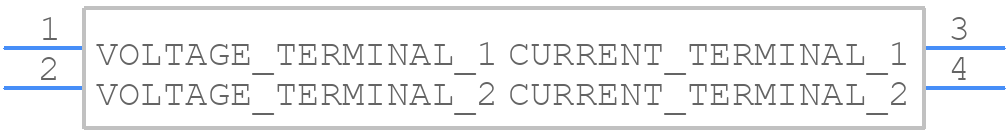

Symbol
RW1S0CKR010FE - Ohmite - PCB symbol
click to zoom
PCB Footprints
RW1S0CKR010FE - Ohmite PCB footprint - Other - Other - RW1S0CKR010FE-2
click to zoom
3D Models
RW1S0CKR010FE - Ohmite - 3D model - Other - RW1S0CKR010FE-2
click to zoom

RW1S0CKR010FE Details

  • Manufacturer Part Number:

    RW1S0CKR010FE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    10

  • Additional Feature:

    FLAMEPROOF, HIGH PRECISION

  • Construction:

    Chip

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    2.1 mm

  • Package Length:

    10.8 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    6.2 mm

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Resistance:

    0.01 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    4324

  • Surface Mount:

    YES

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    500 V

RW1S0CKR010FE Frequently Asked Questions (FAQs)

  • The thermal resistance of the RW1S0CKR010FE is typically around 10°C/W, but it's recommended to consult Ohmite's application notes or contact their technical support for more specific information.
  • The RW1S0CKR010FE is a wirewound resistor, which may not be the best choice for high-frequency applications due to its inductive nature. For high-frequency applications, consider using a thin-film or thick-film resistor instead.
  • The RW1S0CKR010FE has a maximum operating temperature of 250°C, but its power rating decreases as the temperature increases. Consult Ohmite's datasheet and application notes for derating information and ensure the resistor is suitable for your specific application.
  • Yes, the RW1S0CKR010FE is compatible with lead-free soldering processes, but it's essential to follow Ohmite's recommended soldering profiles and guidelines to ensure reliable assembly.
  • The RW1S0CKR010FE has an MSL rating of 1, which means it can withstand normal humidity levels without special handling or storage requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RW1S0CKR010FE Overview

Use the download button to access the RW1S0CKR010FE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RW1S0, or try a keyword search, such as Fixed Resistors
