ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal pad.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for voltage and current. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
The maximum allowable power dissipation for RW4C045BCTCL1 is 4W. However, this value may vary depending on the operating conditions and PCB layout. It's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits.
Yes, RW4C045BCTCL1 can be used in switching regulator applications. However, it's essential to ensure that the device is operated within the recommended switching frequency range (typically 100kHz to 500kHz) and that the output voltage is properly filtered to minimize ringing and overshoot.
ROHM recommends storing RW4C045BCTCL1 in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the device in direct sunlight or near heat sources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RW4C045BCTCL1 Overview

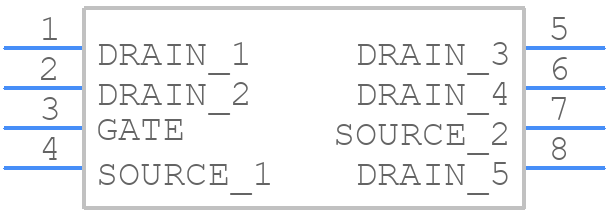

Use the download button to access the RW4C045BCTCL1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RW4C0,
or try a keyword search, such as Power Field-Effect Transistors
