Ra-01S - Ai-Thinker

Description: General ISM < 1GHz LoRa™ Transceiver Module 410MHz ~ 525MHz Antenna Not Included, I-PEX Surface Mount , 2.7V ~ 3.6V , 4.5mA , -40°C ~ 85°C

Download Ra-01S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this Ra-01S model

Email notifications will be applied after download.

Send part feedback

Symbol

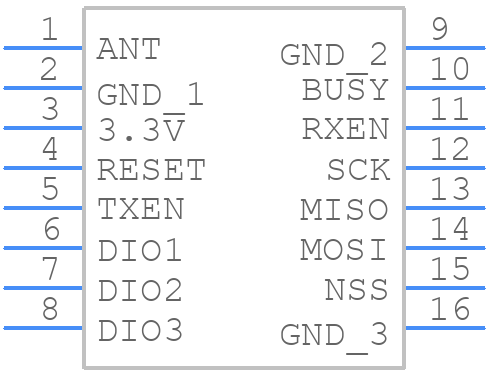

Ra-01S - Ai-Thinker - PCB symbol

PCB Footprints

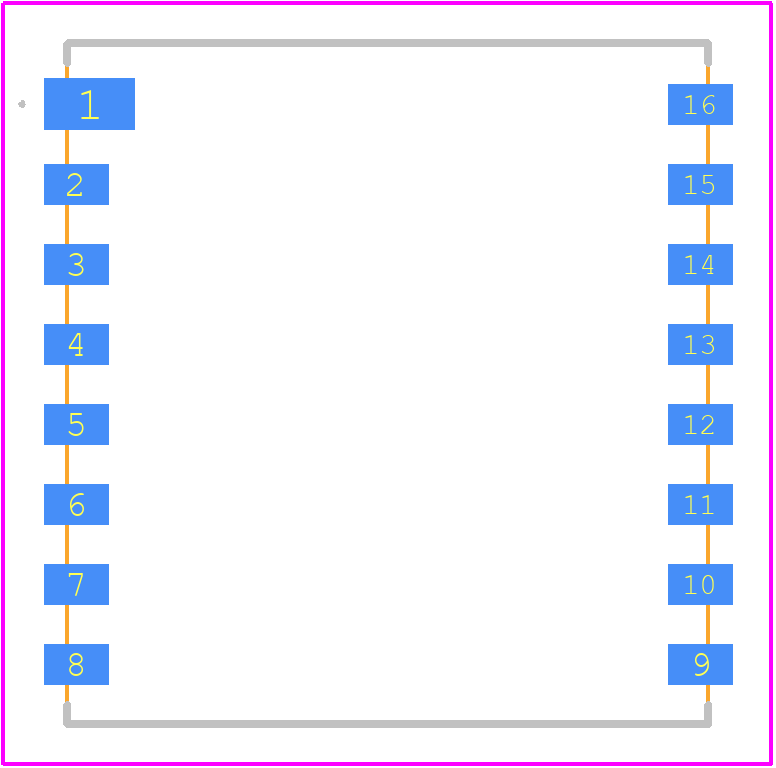

Ra-01S - Ai-Thinker PCB footprint - Other - Other - Ra-01S-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for Ra-01S
Part Number Ra-01S
Manufacturer Ai-Thinker
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - Ra-01S-3
Released Date Aug 25, 2026
Last Modified Date Aug 25, 2026 2:19 PM UTC
