Raspberry Pi Zero W (v1.3) footprint, schematic symbol and 3D model by RASPBERRY-PI

Symbol

click to zoom

PCB Footprints

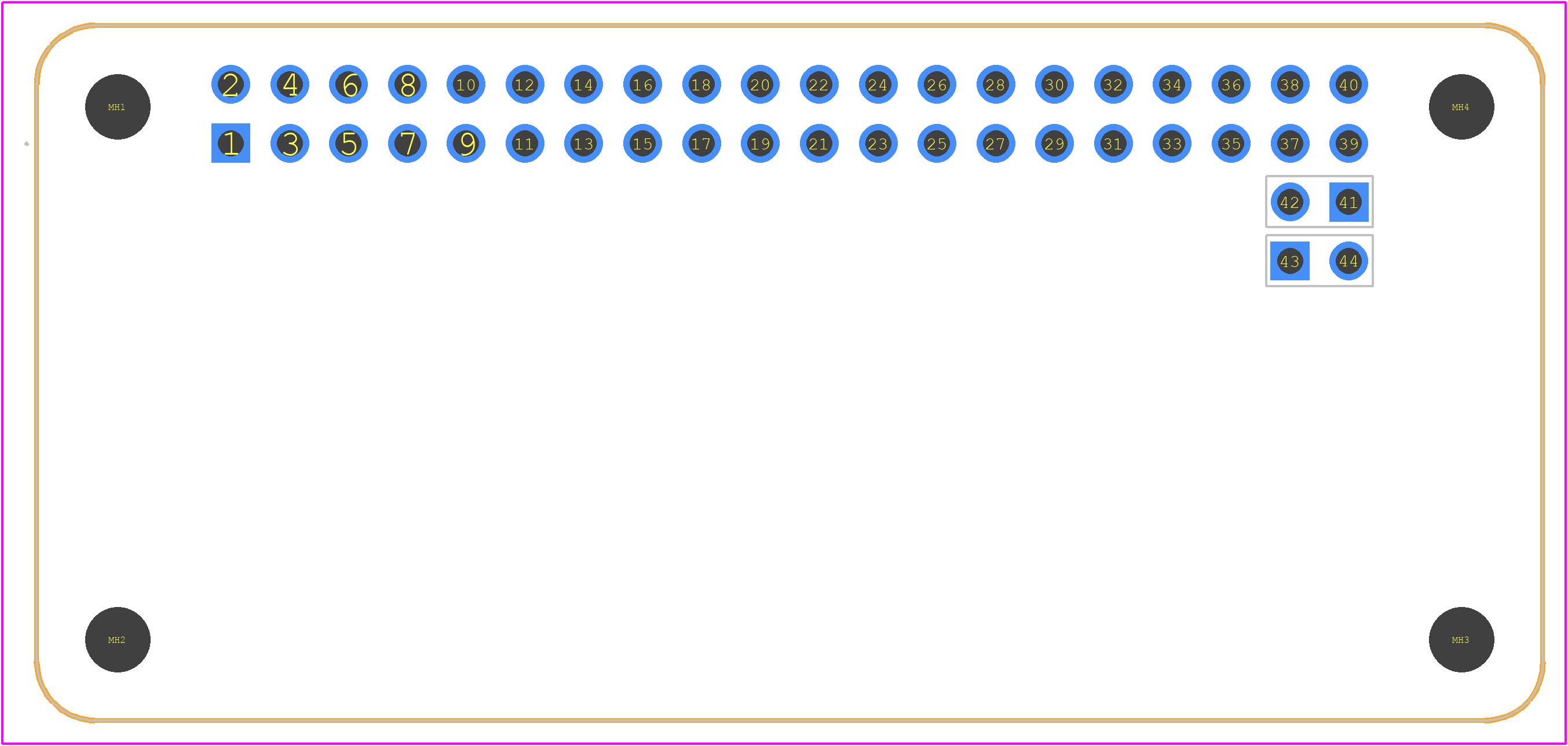

Raspberry Pi Zero W (v1.3) - RASPBERRY-PI PCB footprint - Other - Other - Raspberry Pi Zero W (v1.3)_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for Raspberry Pi Zero W (v1.3)
Part Number Raspberry Pi Zero W (v1.3)
Manufacturer RASPBERRY-PI
Pin Count 44
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - Raspberry Pi Zero W (v1.3)_1
Released Date Mar 28, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

Raspberry Pi Zero W (v1.3) Details

Manufacturer Part Number:
Raspberry Pi Zero W (v1.3)
Manufacturer:
Raspberry Pi

Trust Checks

Expert Contribution

System Verified

Community Approved

Raspberry Pi Zero W (v1.3) Overview

Use the download button to access the Raspberry Pi Zero W (v1.3) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like Raspb, or try a keyword search, such as DC Power Plugs or Jacks
