S-24C04DI-J8T1U5 - ABLIC Inc.

Description: EEPROM 4Kb Serial I2C

Download S-24C04DI-J8T1U5 Model

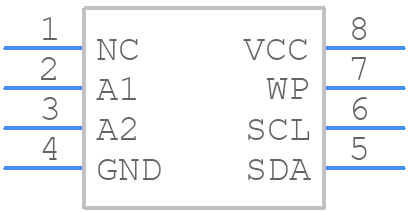

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

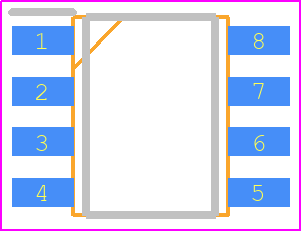

S-24C04DI-J8T1U5 - ABLIC Inc. PCB footprint - Small Outline Packages - Small Outline Packages - SOP8J-Z-PKG
click to zoom
3D Models
S-24C04DI-J8T1U5 - ABLIC Inc.  - 3D model - Small Outline Packages - SOP8J-Z-PKG
click to zoom

S-24C04DI-J8T1U5 Details

  • Manufacturer Part Number:

    S-24C04DI-J8T1U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO OPERATES AT 0.4 MHZ AT 1.7 TO 5.5 V SUPPLY VOLTAGE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.02 mm

  • Memory Density:

    4096 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    I2C

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    5 ms

S-24C04DI-J8T1U5 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S-24C04DI-J8T1U5 is 1.7V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.5V to 6.0V for a short duration, but prolonged operation outside the recommended range may affect its performance and lifespan.
  • The S-24C04DI-J8T1U5 has an internal POR and BOR circuitry. The POR function resets the device when the power supply voltage rises above the POR threshold (typically 1.7V). The BOR function resets the device when the power supply voltage falls below the BOR threshold (typically 1.5V). To handle these functions, ensure that your power supply design provides a stable voltage within the recommended operating range, and consider adding external circuitry to filter out noise and voltage spikes.
  • The S-24C04DI-J8T1U5 supports a maximum clock frequency of 400 kHz, as specified in the datasheet. However, it's essential to note that the actual clock frequency may vary depending on the specific application, operating voltage, and temperature conditions.
  • To ensure data retention in the S-24C04DI-J8T1U5, it's essential to follow proper power-down and power-up sequences. When powering down, ensure that the VCC supply voltage is reduced to 0V or a voltage below the BOR threshold. During power-down, the device will automatically enter a low-power standby mode, and the data will be retained. When powering up, ensure that the VCC supply voltage rises above the POR threshold to allow the device to properly initialize and retain data.
  • The typical write endurance of the S-24C04DI-J8T1U5 is 1 million write cycles, as specified in the datasheet. However, this value may vary depending on the specific application, operating conditions, and usage patterns. It's essential to consider the write endurance when designing your application to ensure reliable data storage and retrieval.
