S-35390A-I8T1U - SII Semiconductor

Description: Real Time Clock 2-wire Real Time Clock

Download S-35390A-I8T1U Model

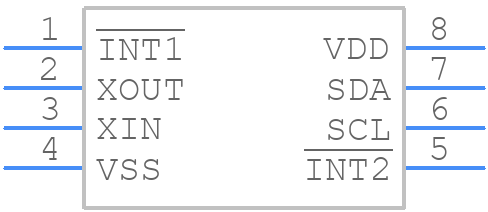

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S-35390A-I8T1U - SII Semiconductor PCB footprint - Other - Other - S-35390A-I8T1U-2
click to zoom
3D Models
S-35390A-I8T1U - SII Semiconductor  - 3D model - Other - S-35390A-I8T1U-2
click to zoom

S-35390A-I8T1U Details

  • Manufacturer Part Number:

    S-35390A-I8T1U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SNT-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    6.48

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C), SERIAL, 2-WIRE

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Length:

    2.23 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOF

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    1.97 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

S-35390A-I8T1U Frequently Asked Questions (FAQs)

  • The recommended operating voltage range is 2.5V to 5.5V, as specified in the datasheet.
  • To ensure stability, it's recommended to use a 10uF or larger ceramic capacitor for C1 and a 1uF or larger ceramic capacitor for C2, as shown in the datasheet's application circuit.
  • The maximum output current capability is 500mA, as specified in the datasheet.
  • It's recommended to provide adequate heat dissipation, such as using a thermal pad or heat sink, to ensure the device operates within the specified temperature range.
  • Yes, it's recommended to follow the datasheet's recommended layout guidelines, including keeping the input and output capacitors close to the device, and using a solid ground plane to minimize noise and EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S-35390A-I8T1U Overview

Use the download button to access the S-35390A-I8T1U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S-353, or try a keyword search, such as Timers or RTCs
