S-35720C02A-K8T2U - ABLIC Inc.

Description: Timers & Support Products

Download S-35720C02A-K8T2U Model

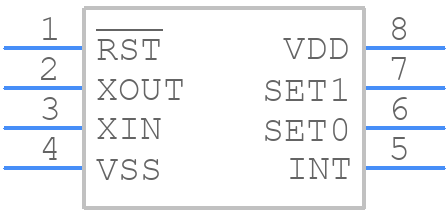

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S-35720C02A-K8T2U - ABLIC Inc. PCB footprint - Small Outline Packages - Small Outline Packages - TMSOP-8
click to zoom
3D Models
S-35720C02A-K8T2U - ABLIC Inc.  - 3D model - Small Outline Packages - TMSOP-8
click to zoom

S-35720C02A-K8T2U Details

  • Manufacturer Part Number:

    S-35720C02A-K8T2U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TMSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    6

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C), SERIAL, 2-WIRE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Number of Bits:

    24

  • Number of Terminals:

    8

  • Number of Timers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2.8 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

S-35720C02A-K8T2U Frequently Asked Questions (FAQs)

  • The maximum input voltage is 36V, but it's recommended to keep it below 32V for stable operation and to prevent overheating.
  • To ensure stability, it's essential to use a capacitor with a capacitance value of 1uF or more, and an ESR of 1Ω or less, between the VOUT and GND pins.
  • The minimum input voltage is 5.5V, but it's recommended to keep it above 6V for stable operation.
  • The operating temperature range is -40°C to 105°C, but the device's performance and reliability may degrade above 85°C. It's recommended to use a heat sink or thermal management system to keep the temperature below 85°C.
  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

S-35720C02A-K8T2U Overview

Use the download button to access the S-35720C02A-K8T2U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S-357, or try a keyword search, such as Timers or RTCs
