S-UM6531E footprint, schematic symbol and 3D model by ABLIC Inc.

Symbol

click to zoom

PCB Footprints

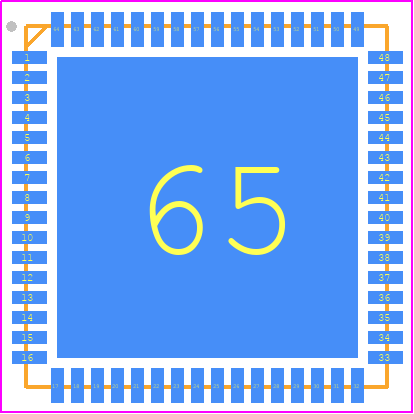

S-UM6531E - ABLIC Inc. PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN64-B-PKG

click to zoom

3D Models

S-UM6531E - ABLIC Inc. - 3D model - Quad Flat No-Lead - QFN64-B-PKG

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for S-UM6531E
Part Number S-UM6531E
Manufacturer ABLIC Inc.
Pin Count 65
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN64-B-PKG
Released Date Mar 7, 2025
Last Modified Date Mar 7, 2025 10:14 AM UTC
Pinout / Pin List Click Here (Member Only)

S-UM6531E Details

Manufacturer Part Number:
S-UM6531E
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-64
HTS Code:
8542.39.00.60
Factory Lead Time:
30 Weeks
Manufacturer:
ABLIC Inc.
YTEOL:
7
Analog IC - Other Type:
SPDT
JESD-30 Code:
S-XQCC-N64
Length:
9 mm
Normal Position:
NC
Number of Channels:
32
Number of Functions:
1
Number of Terminals:
64
Off-state Isolation-Nom:
65 dB
On-state Resistance Match-Nom:
0.16 Ω
On-state Resistance-Max (Ron):
10 Ω
Operating Temperature-Max:
75 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC64,.35SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.9 mm
Signal Current-Max:
2.5 A
Supply Current-Max (Isup):
4.6 mA
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
4000 ns
Switch-on Time-Max:
4000 ns
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
10
Width:
9 mm

S-UM6531E Frequently Asked Questions (FAQs)

ABLIC Inc. recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IC. Keep the input and output traces short and away from noise sources. Use a 10uF capacitor between VCC and GND for decoupling.
Apply power to VCC and GND pins simultaneously. Ensure the input voltage is within the recommended range (2.7V to 5.5V). Wait for the internal power-on reset (POR) to complete (typically 10ms) before sending commands or data.
The S-UM6531E can operate safely between -40°C to 85°C. However, the device's accuracy and performance may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
Yes, the S-UM6531E is designed to withstand vibrations up to 10G (10Hz to 2kHz) and shocks up to 100G (11ms). However, it's essential to follow proper PCB mounting and soldering techniques to ensure the device's reliability in such environments.
Consult the datasheet for troubleshooting guidelines. Check the power supply, PCB layout, and signal integrity. Verify the communication protocol and settings. Use a logic analyzer or oscilloscope to debug the issue. If necessary, contact ABLIC Inc.'s technical support for further assistance.

Trust Checks

Community Provided

System Verified

Community Approved

S-UM6531E Overview

Use the download button to access the S-UM6531E schematic symbol, PCB footprint, and 3D model.
