S11108 - Hamamatsu

Description: IMAGE SENSOR, 14UM X 14UM 5V Single Power Supply

Download S11108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

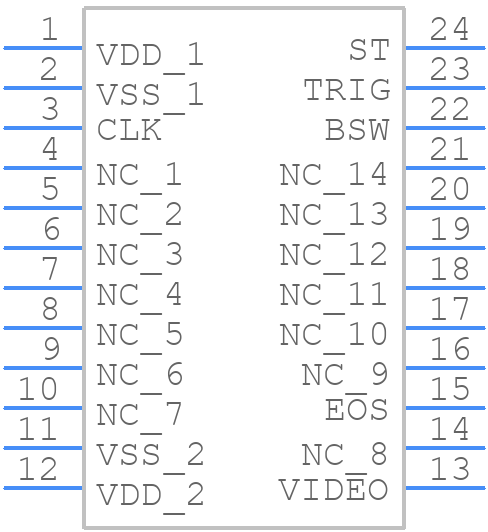

S11108 - Hamamatsu - PCB symbol
click to zoom
PCB Footprints

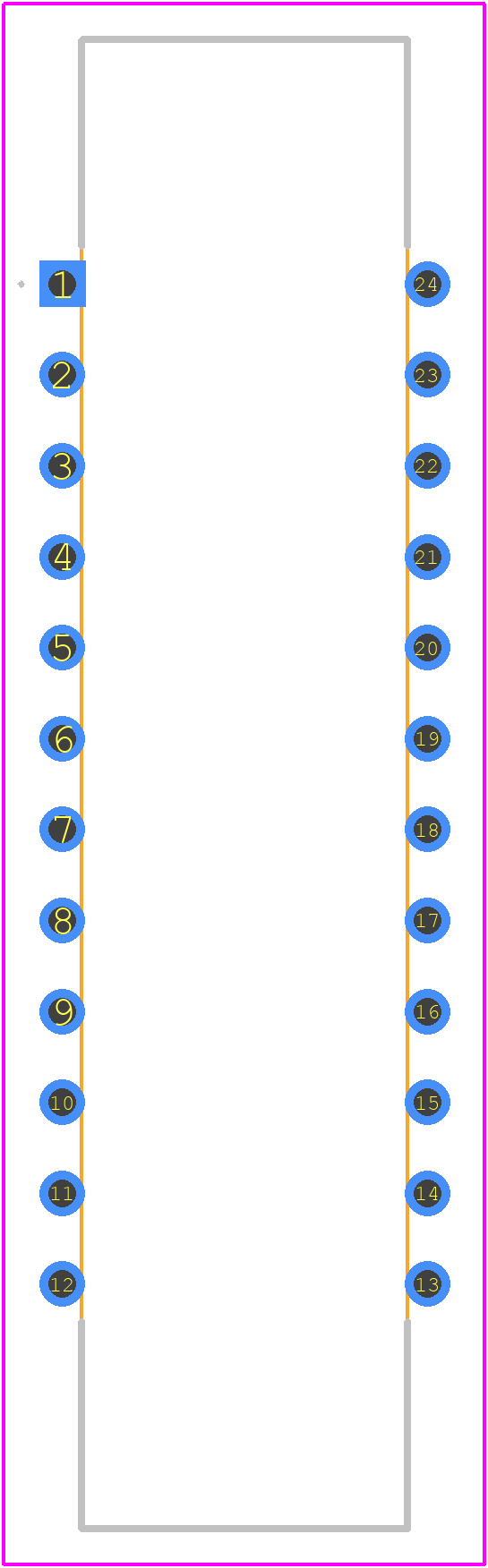

S11108 - Hamamatsu PCB footprint - Other - Other - S11108-2
click to zoom
3D Models
S11108 - Hamamatsu - 3D model - Other - S11108-2
click to zoom

S11108 Details

  • Manufacturer Part Number:

    S11108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • Manufacturer:

    Hamamatsu Photonics

  • YTEOL:

    6

  • Additional Feature:

    IT ALSO HAVE A DYNAMIC RANGE OF 66 DB

  • Array Type:

    LINEAR

  • Body Breadth:

    10.02 mm

  • Body Height:

    3 mm

  • Body Length or Diameter:

    41.6 mm

  • Data Rate:

    10 Mbps

  • Dynamic Range:

    72.04 dB

  • Horizontal Pixel:

    2048

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Current-Max:

    50 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pixel Size:

    14X14 µm

  • Sensitivity (V/lx.s):

    50 V/lx.s

  • Sensors/Transducers Type:

    IMAGE SENSOR,CMOS

  • Spectral Response (nm):

    400-1000

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    1

S11108 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the S11108 is -20°C to 70°C. However, it's essential to note that the device's performance may degrade at extreme temperatures.
  • To prevent damage, store the S11108 in a dry, clean environment away from direct sunlight and moisture. During transportation, ensure the device is securely packaged to prevent mechanical shock and vibration.
  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less. Exceeding this temperature or time may damage the device.
  • While the S11108 is designed to operate in a normal humidity range, it's not recommended for use in extremely humid environments. If you must use it in a humid environment, ensure proper sealing and protection to prevent moisture ingress.
  • Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the device. Avoid using chemicals, solvents, or ultrasonic cleaners, as they may damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S11108 Overview

Use the download button to access the S11108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S1110, or try a keyword search, such as Image Sensors
