S11299-021 - Hamamatsu

Description: Back-illuminated photodiode arrays for X-ray non-destructive inspection, slender board type

Download S11299-021 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S11299-021 model

Email notifications will be applied after download.

Send part feedback

Symbol

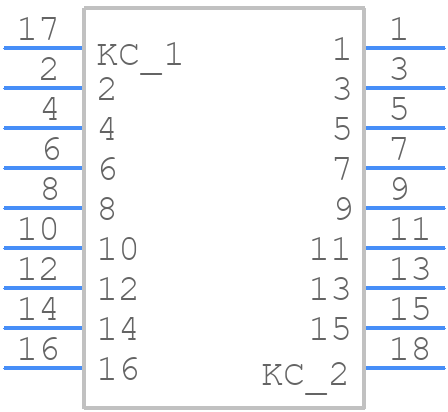

S11299-021 - Hamamatsu - PCB symbol

PCB Footprints

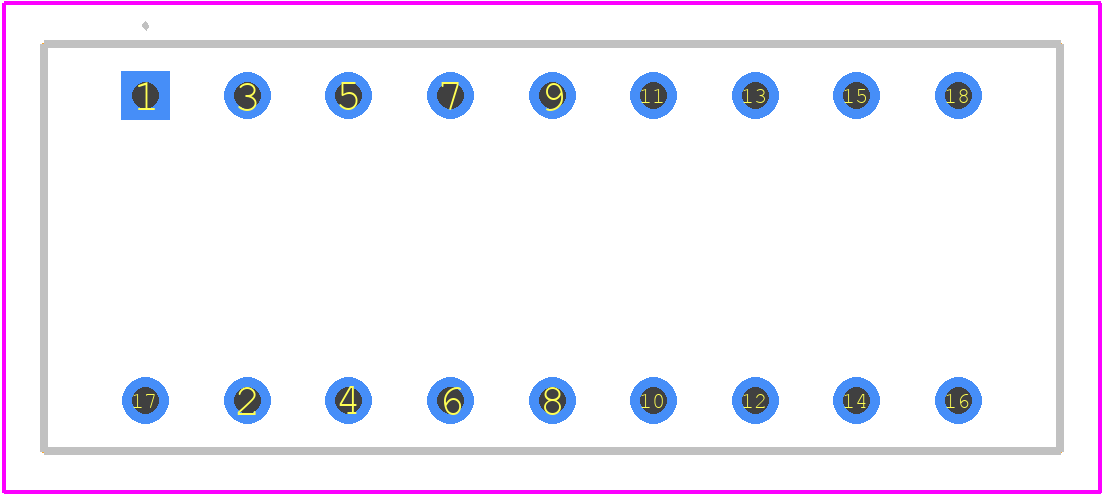

S11299-021 - Hamamatsu PCB footprint - Other - Other - S11299-021-2

3D Models

S11299-021 - Hamamatsu - 3D model - Other - S11299-021-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for S11299-021
Part Number S11299-021
Manufacturer Hamamatsu
Pin Count 18
Part Category Photodiode
Package Category Other
Footprint Name Other - S11299-021-2
Released Date May 15, 2024
Last Modified Date May 15, 2024 12:48 PM UTC
Pinout / Pin List Click Here (Member Only)

S11299-021 Details

Manufacturer Part Number:
S11299-021
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Hamamatsu Photonics
Optoelectronic Device Type:
PN PHOTODIODE
