S114-26 - Teledyne Technologies

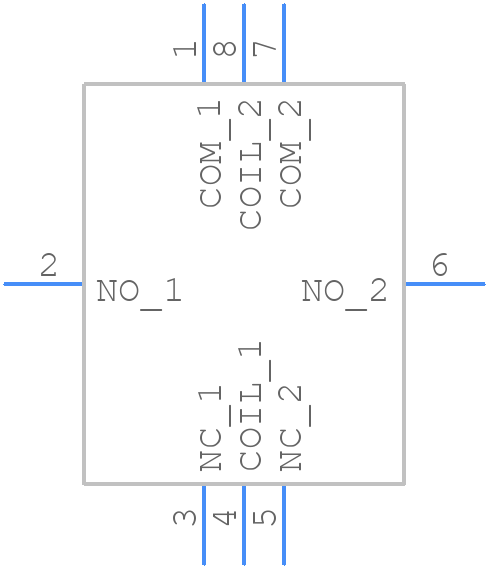

S114-26 Details

• Manufacturer Part Number:

  S114-26

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mexico, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Teledyne Technologies Inc

• YTEOL:

  7.85

• Body Breadth:

  8.51 mm

• Body Height:

  6.99 mm

• Body Length or Diameter:

  9.53 mm

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  450 mW

• Coil Release Voltage(DC):

  0.89 V

• Coil Resistance:

  1560 Ω

• Coil Voltage(DC)-Max:

  26.5 V

• Coil Voltage-Nom:

  26.5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  .25A@115VAC

• Contact Current(AC)-Max:

  0.25 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@28VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• Input Switching Control Type:

  Random

• Insulation Resistance:

  10000000000 Ω

• JESD-609 Code:

  e0

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Terminals:

  2

• Operate Time:

  3.5 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Physical Dimension:

  9.53mm x 8.51mm x 6.99mm

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  4 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Lead (Sn60Pb40)

• Termination Type:

  SOLDER
