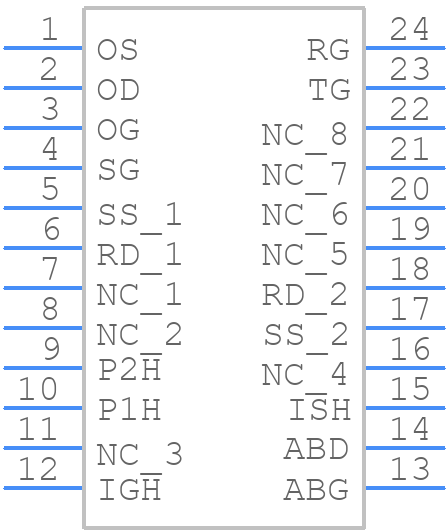

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S12551-1024
- Part Number S12551-1024
- Manufacturer Hamamatsu
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

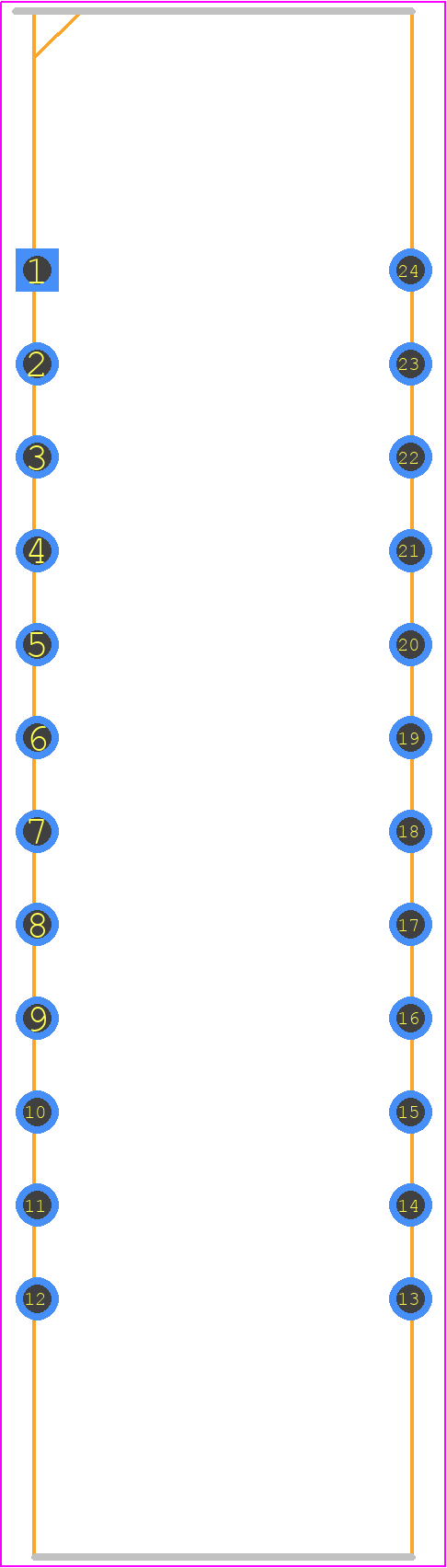

- Footprint Name Dual-In-Line Packages - S12551-1024_41.6x10.03x4.4
- Released Date May 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
S12551-1024 Details
-
Manufacturer Part Number:
S12551-1024
-
Manufacturer:
Hamamatsu Photonics
Trust Checks
Community Provided
System Verified
Community Approved
S12551-1024 Overview
Use the download button to access the S12551-1024 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S1255,
or try a keyword search, such as Image Sensors
