S2-24VDC - Panasonic

Description: PANASONIC - S2-24VDC - General Purpose Relay, S Series, Power, Non Latching, DPST-NO, DPST-NC, 24 VDC

Download S2-24VDC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S2-24VDC model

Email notifications will be applied after download.

Send part feedback

Symbol

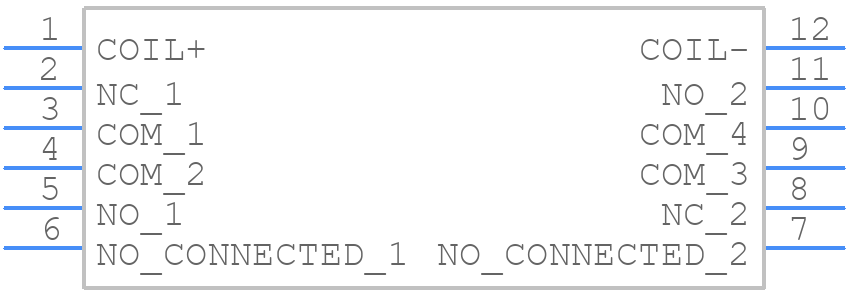

S2-24VDC - Panasonic - PCB symbol

PCB Footprints

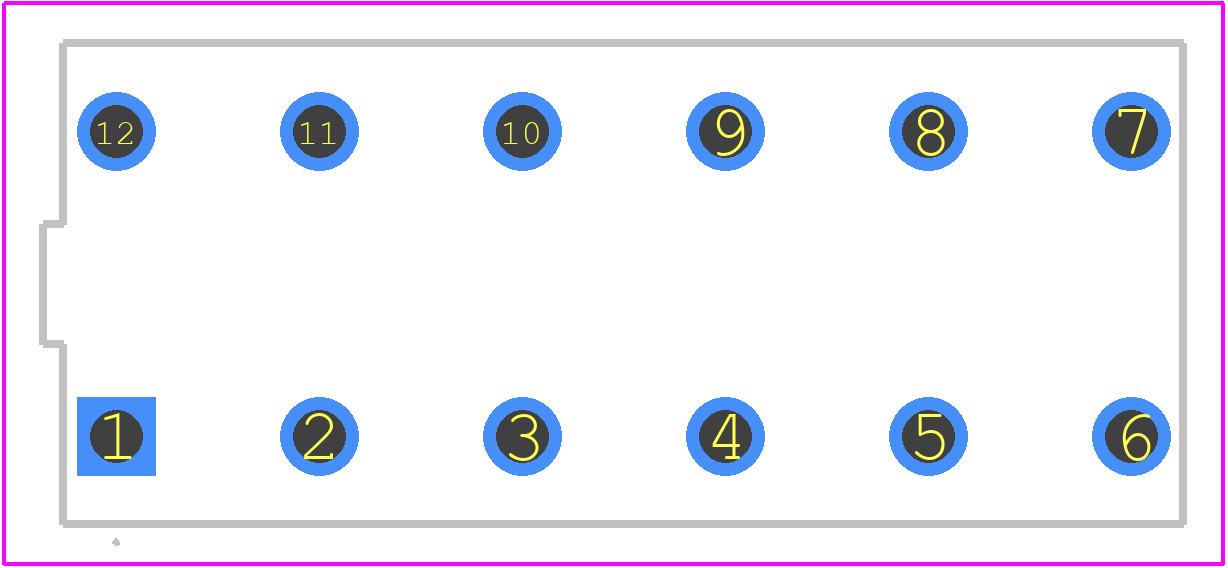

S2-24VDC - Panasonic PCB footprint - Other - Other - S2-24VDC-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for S2-24VDC
Part Number S2-24VDC
Manufacturer Panasonic
Pin Count 12
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - S2-24VDC-3
Released Date Aug 15, 2024
Last Modified Date Aug 15, 2024 3:11 PM UTC
Pinout / Pin List Click Here (Member Only)

S2-24VDC Details

Manufacturer Part Number:
S2-24VDC
Manufacturer:
Panasonic Electronic Components
