A recommended PCB layout is to use a solid ground plane on the bottom layer, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead on the input line to reduce EMI.
The S22P015S05 has a maximum junction temperature of 125°C. To ensure proper cooling, it's recommended to attach a heat sink to the device, and to provide adequate airflow around the component. The thermal resistance of the heat sink should be less than 10°C/W.
The S22P015S05 can withstand voltage transients of up to 50V for a duration of 100ms. However, it's recommended to use a TVS diode or a varistor to protect the device from voltage spikes and surges.
Yes, the S22P015S05 is designed for high-reliability applications. It's built with a robust design and undergoes rigorous testing to ensure its reliability. However, it's recommended to follow the recommended operating conditions and to perform thorough testing and validation for the specific application.
To troubleshoot issues with the S22P015S05, first check the input voltage and current to ensure they are within the recommended operating range. Next, check the output voltage and current to ensure they are within the specified range. If the issue persists, check the PCB layout and ensure that it meets the recommended layout guidelines. If the issue still persists, contact Tamura Corporation of America's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S22P015S05 Overview

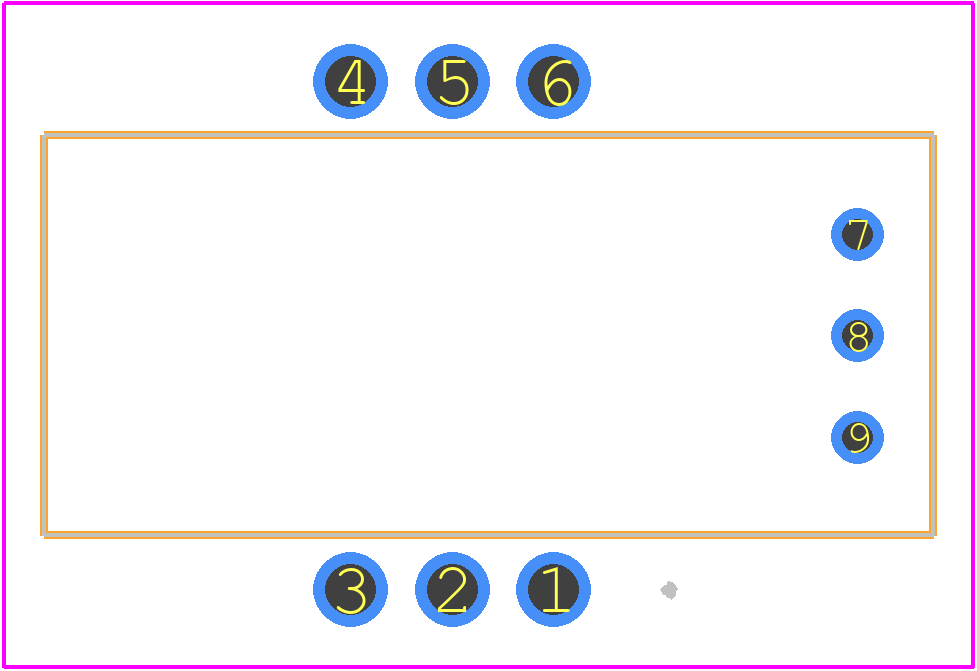

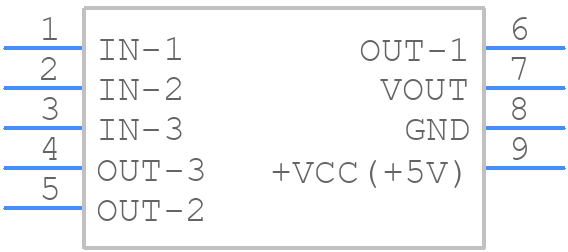

Use the download button to access the S22P015S05 schematic symbol, PCB footprint, and 3D model.
