ALSO AVAILABLE OUTPUT VOLTAGE: -15V; SEATED HGT-CALCULATED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-MDMA-P6
Length:
25.4 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
56 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.45 V
Output Voltage-Min:
14.55 V
Output Voltage-Nom:
15 V
Package Body Material:
METAL
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
25.4 mm
S24DE15001NDFA Frequently Asked Questions (FAQs)
A good PCB layout should ensure good thermal conductivity, minimal inductance, and proper decoupling. A thermal pad on the bottom of the device should be connected to a large copper area on the PCB to dissipate heat. A 4-layer PCB with a solid ground plane and a separate power plane is recommended.
To ensure EMC, use a shielded enclosure, keep the input and output cables short and twisted, and add EMI filters at the input and output. Also, ensure the PCB layout is optimized for minimal radiation and susceptibility.
Derating curves are not explicitly provided in the datasheet. However, as a general guideline, derate the output power by 1-2% per degree Celsius above the recommended operating temperature range. Consult with Delta Electronics Inc or a qualified engineer for specific guidance.
Yes, but it's essential to ensure proper synchronization and current sharing between units. Consult with Delta Electronics Inc or a qualified engineer to design a reliable and efficient redundant or parallel configuration.
Reliability and MTBF estimates are not explicitly provided in the datasheet. However, Delta Electronics Inc may provide this information upon request or through a reliability report. Consult with the manufacturer for specific data.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24DE15001NDFA Overview

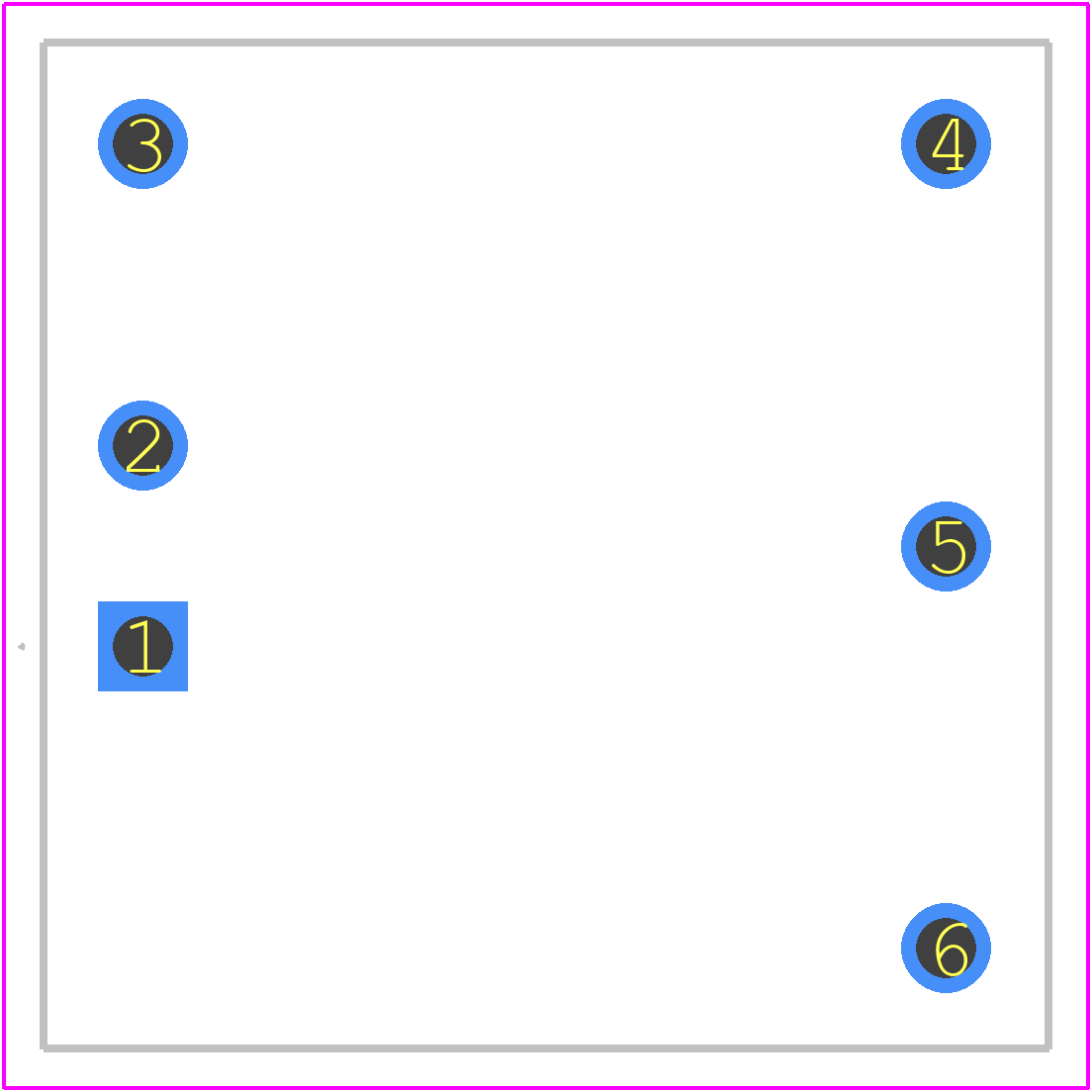

Use the download button to access the S24DE15001NDFA schematic symbol, PCB footprint, and 3D model.
