A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using the correct timing and voltage sequencing to prevent damage to the device or other components in the system.
Operating the converter in a high-temperature environment can reduce its reliability and lifespan. It's essential to ensure good airflow and heat dissipation to keep the device within its specified temperature range. Derating the output power or using a heat sink may be necessary in high-temperature environments.
To troubleshoot issues with the output voltage or current, start by checking the input voltage, output load, and PCB layout. Verify that the device is properly configured and that the output voltage and current are within the specified ranges. Use an oscilloscope to measure the output voltage and current waveforms to identify any anomalies.
The S24DE15001PDFA is designed to meet CISPR 22 and FCC Part 15 Class B EMI standards. To ensure EMI compliance, follow good PCB layout practices, use a metal enclosure, and add EMI filters or shielding as necessary. Additionally, ensure that the device is properly grounded and that all cables are properly shielded and routed.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24DE15001PDFA Overview

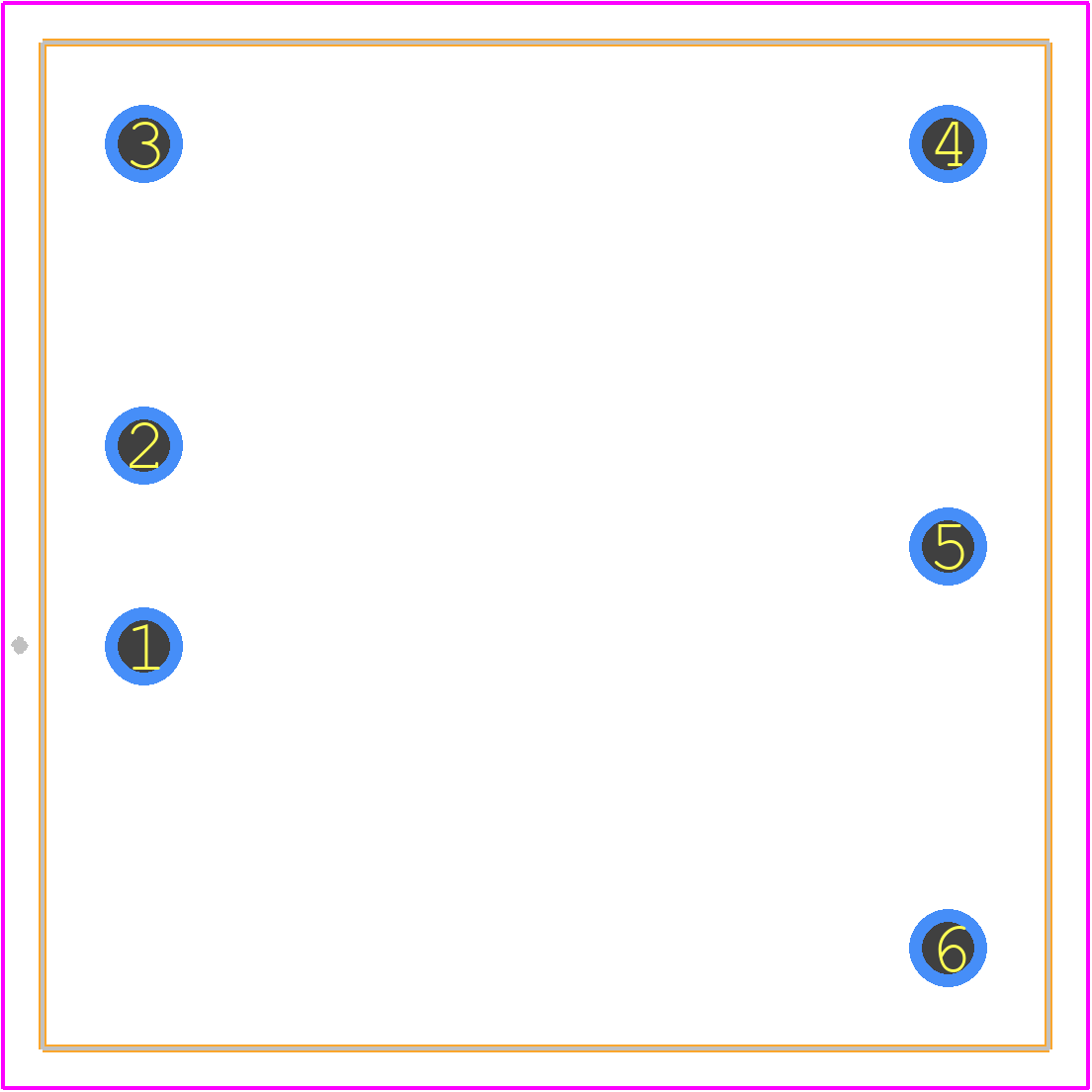

Use the download button to access the S24DE15001PDFA schematic symbol, PCB footprint, and 3D model.
