S24DE150R3PDFA - Delta Electronics

Description: Isolated DC/DC Converters DC/DC Converter, +/-15Vout, 10W

Download S24DE150R3PDFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S24DE150R3PDFA - Delta Electronics - PCB symbol
click to zoom
PCB Footprints

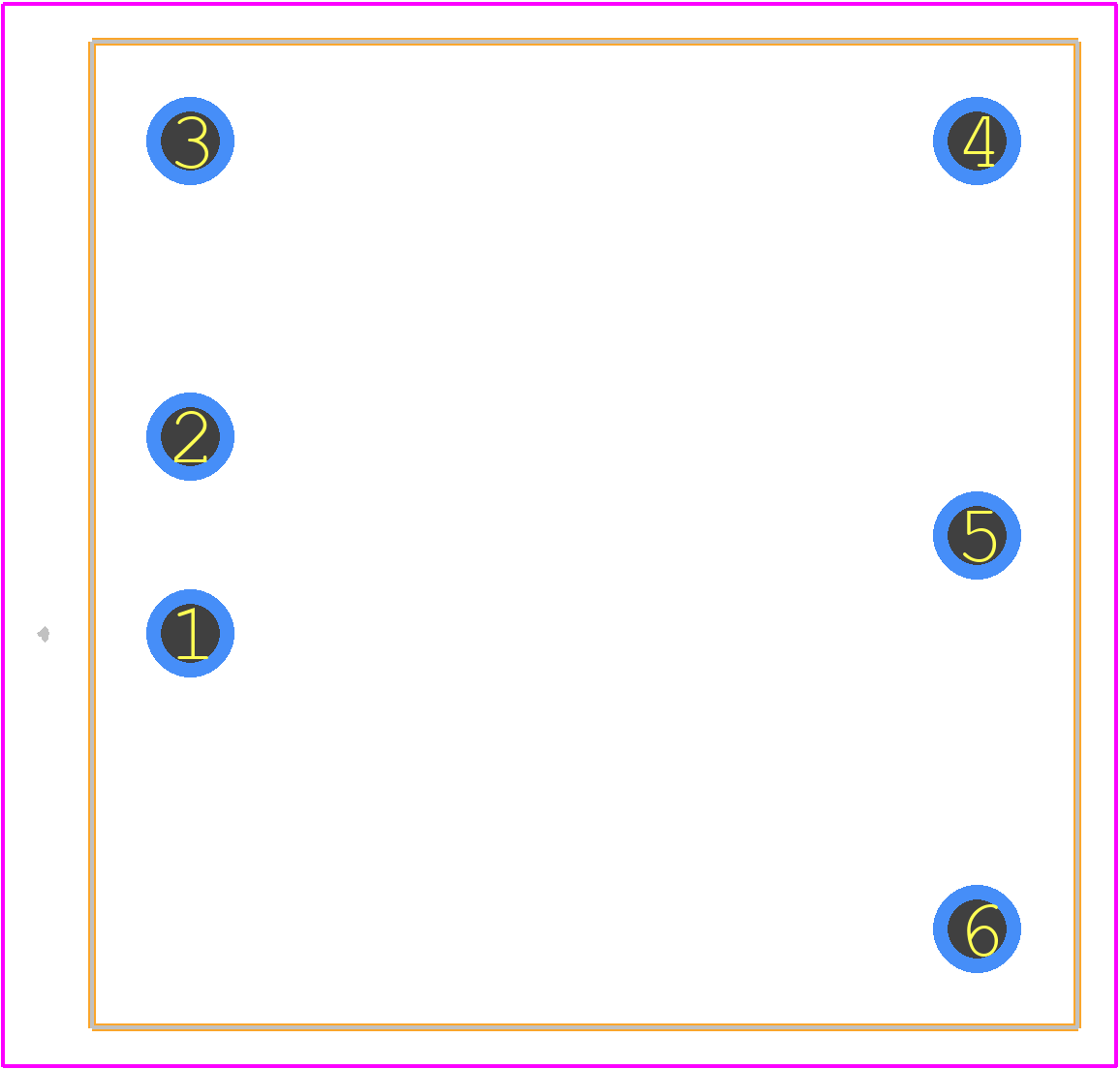

S24DE150R3PDFA - Delta Electronics PCB footprint - Other - Other - S24DE150R3PDFA-1
click to zoom
3D Models
S24DE150R3PDFA - Delta Electronics - 3D model - Other - S24DE150R3PDFA-1
click to zoom

S24DE150R3PDFA Details

  • Manufacturer Part Number:

    S24DE150R3PDFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    6

  • Additional Feature:

    ALSO -15V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    82 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    9.9 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

S24DE150R3PDFA Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal plate or a heat sink, and ensuring good airflow around the component. The PCB should also have sufficient thermal vias to dissipate heat efficiently.
  • To ensure EMC, it is recommended to use a metal shield around the DC-DC converter, and to keep the input and output cables as short as possible. Additionally, the PCB should be designed with EMC in mind, with proper grounding and shielding.
  • The maximum capacitance on the output of the DC-DC converter is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the S24DE150R3PDFA is designed to withstand high-vibration environments. However, it is recommended to secure the component properly to the PCB and to ensure that the PCB is designed to withstand the vibration.
  • The derating curve for the S24DE150R3PDFA can be obtained from Delta Electronics Inc. or from the datasheet. It is recommended to derate the output power based on the ambient temperature to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S24DE150R3PDFA Overview

Use the download button to access the S24DE150R3PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24DE, or try a keyword search, such as Power Supply Modules
