A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
Proper cooling in a sealed enclosure requires careful consideration of airflow, thermal interfaces, and heat sink design. Ensure good airflow around the device, use thermal interfaces with high thermal conductivity, and design a heat sink that maximizes heat dissipation. Consult with a thermal expert or follow established thermal design guidelines.
At high altitudes, the air pressure is lower, which can affect the device's thermal performance and reliability. Derate the device's power output and ensure good airflow to prevent overheating. Consult with the manufacturer or a thermal expert for specific guidance on high-altitude operation.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback loop components. Verify that the input voltage is within the specified range, the output load is within the recommended range, and the feedback loop components are properly connected and functioning correctly.
The S24SE05003PDFA is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. However, proper PCB layout, grounding, and shielding are still essential to minimize EMI and RFI. Follow good electromagnetic compatibility (EMC) design practices to ensure compliance with relevant standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SE05003PDFA Overview

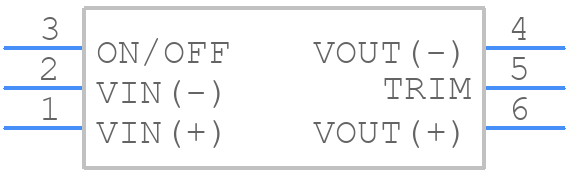

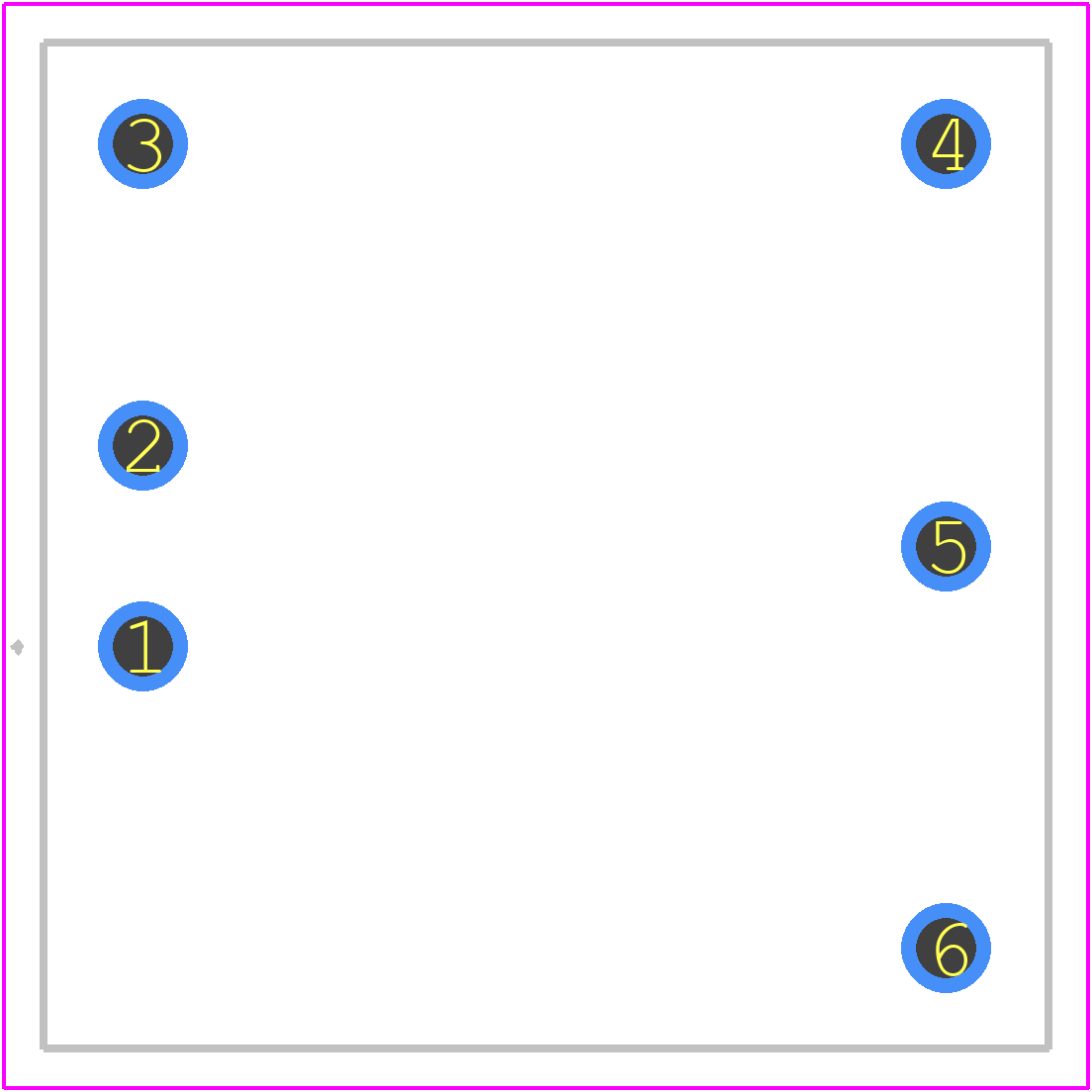

Use the download button to access the S24SE05003PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SE,
or try a keyword search, such as Power Supply Modules
