A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using the correct timing and voltage sequencing to prevent damage to the device or other components in the system.
Operating the converter outside of its specified input voltage range can lead to reduced efficiency, increased heat generation, and potentially even damage to the device. It's essential to ensure the input voltage remains within the specified range to guarantee reliable operation and prevent premature failure.
To troubleshoot issues with the converter's output voltage regulation, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The S24SE05004PDFA is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To ensure compliance, follow proper PCB layout and design practices, use shielding and filtering as necessary, and consult the datasheet and application notes for guidance on EMI and EMC considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SE05004PDFA Overview

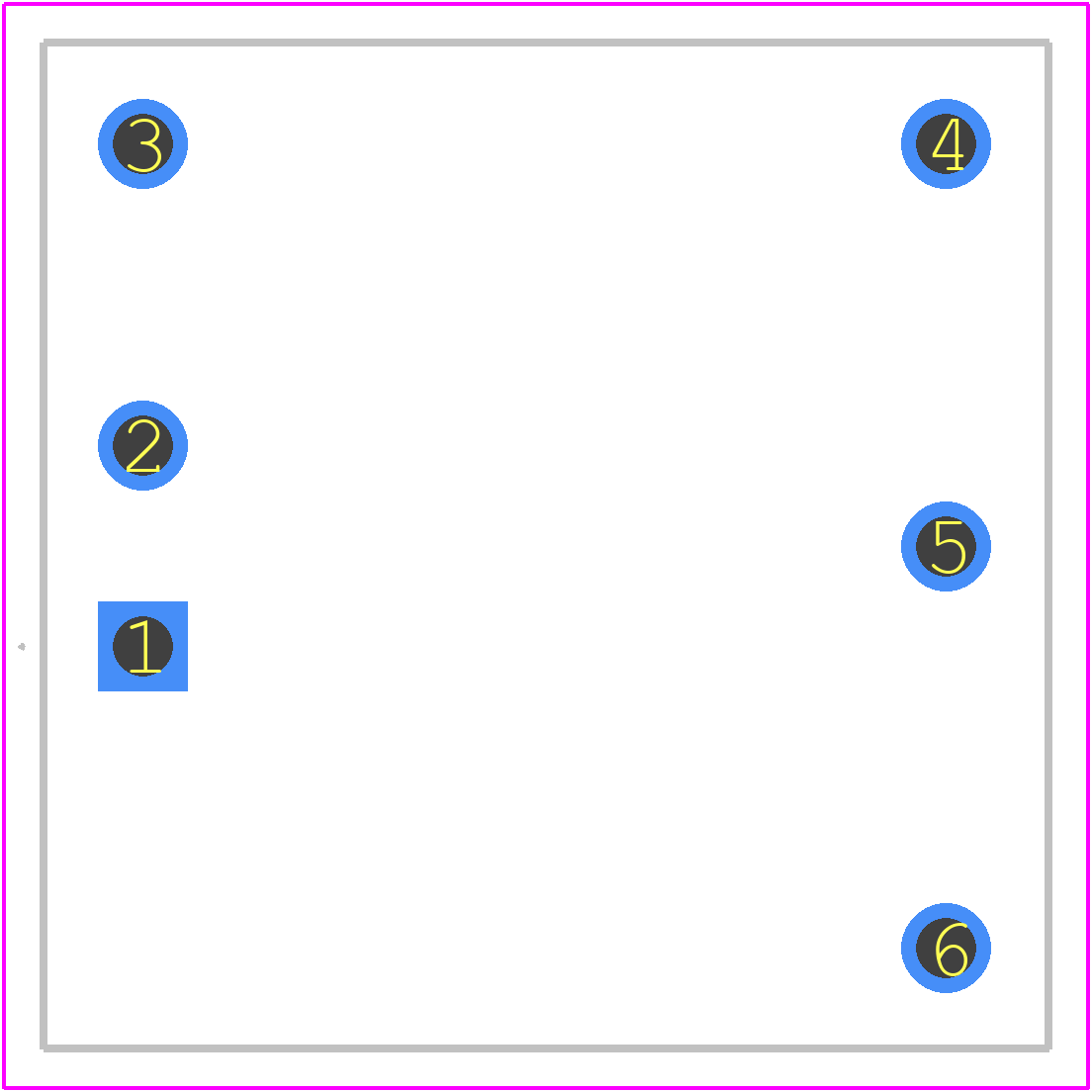

Use the download button to access the S24SE05004PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SE,
or try a keyword search, such as Power Supply Modules
