A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliable start-up and shutdown, it's essential to follow the recommended start-up and shutdown sequences outlined in the datasheet. Additionally, ensure that the input voltage is within the specified range, and the output voltage is properly decoupled to prevent voltage spikes.
Operating the converter in a high-temperature environment can reduce its lifespan and affect its performance. It's essential to ensure good airflow, use a heat sink if necessary, and derate the converter's output power according to the datasheet's thermal derating curve.
To troubleshoot issues with the converter's output voltage regulation, check the input voltage, output load, and PCB layout for any anomalies. Verify that the output voltage is within the specified range, and the output capacitors are properly selected and sized.
The S24SE12002PDFA is designed to meet CISPR 22 Class B EMI standards. To ensure EMI compliance, follow good PCB design practices, use a metal enclosure, and add EMI filters or shielding if necessary. Additionally, ensure that the converter is installed in a way that minimizes electromagnetic radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SE12002PDFA Overview

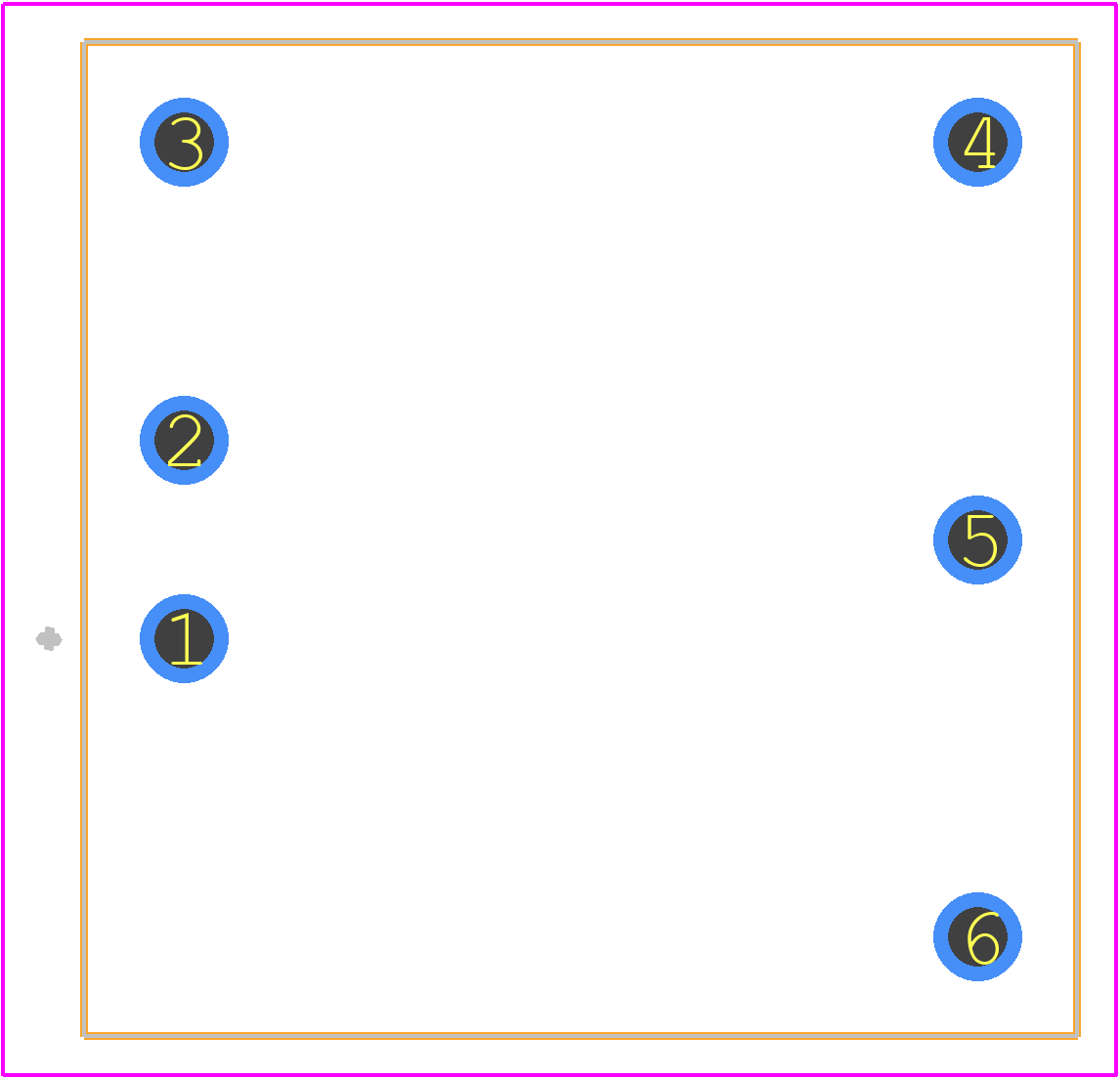

Use the download button to access the S24SE12002PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SE,
or try a keyword search, such as Power Supply Modules
