A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliability in high-temperature environments, it's crucial to follow the recommended derating curves, ensure good airflow, and avoid exceeding the maximum junction temperature. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
The input voltage tolerance affects the converter's performance, efficiency, and reliability. Ensure the input voltage is within the specified range to maintain optimal performance. A 10% input voltage tolerance is recommended to account for voltage fluctuations and ensure reliable operation.
To troubleshoot output voltage deviations or instability issues, check the input voltage, output load, and PCB layout. Ensure the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout follows good design practices. Also, verify that the output capacitors are of sufficient value and type.
To minimize EMI and ensure EMC compliance, follow good design practices for PCB layout, component selection, and shielding. Ensure the converter is placed in a shielded enclosure, and consider adding EMI filters or common-mode chokes to the input and output lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SE12003PDFA Overview

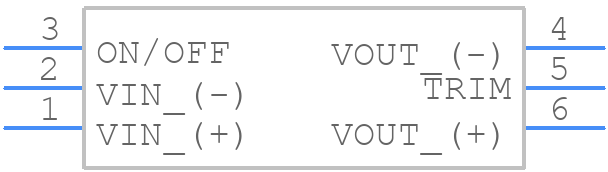

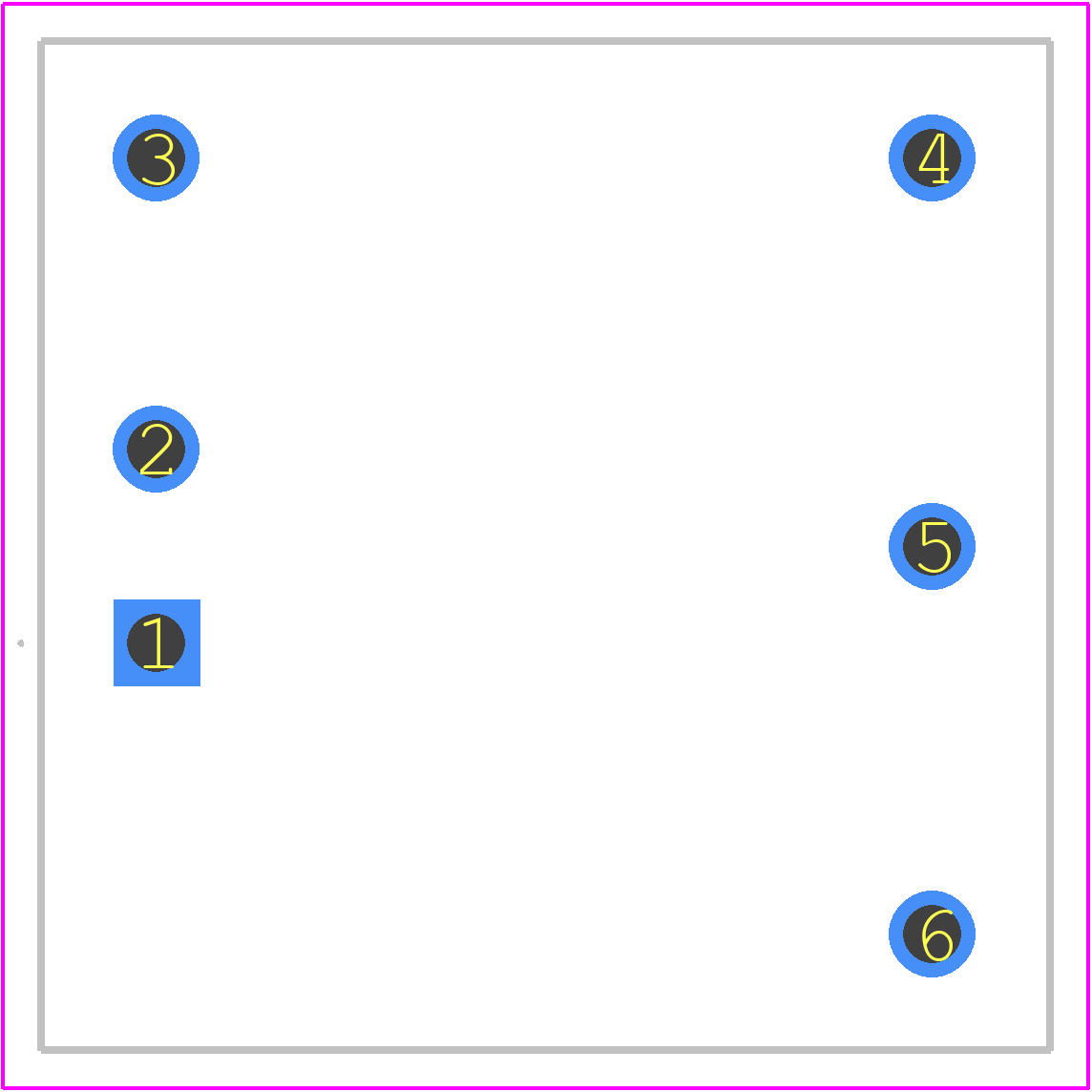

Use the download button to access the S24SE12003PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SE,
or try a keyword search, such as Power Supply Modules
