S24SE15001PDFA - Delta Electronics

Description: Isolated DC/DC Converters DC/DC Converter, +15Vout, 20W

Download S24SE15001PDFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S24SE15001PDFA - Delta Electronics - PCB symbol
click to zoom

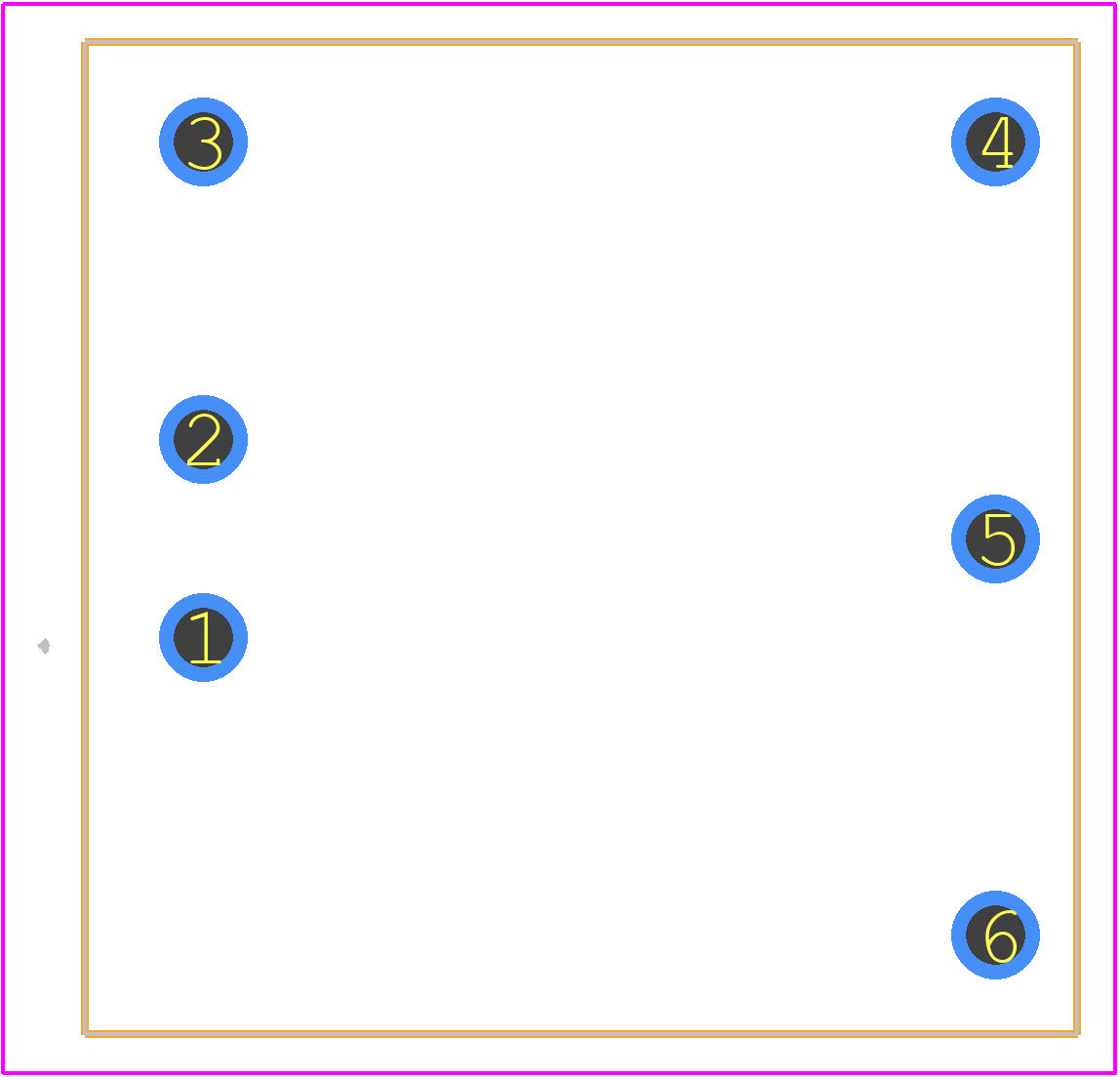

PCB Footprints
S24SE15001PDFA - Delta Electronics PCB footprint - Other - Other - S24SE15001PDFA-1
click to zoom
3D Models
S24SE15001PDFA - Delta Electronics - 3D model - Other - S24SE15001PDFA-1
click to zoom

S24SE15001PDFA Details

  • Manufacturer Part Number:

    S24SE15001PDFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    72 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    19.95 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

S24SE15001PDFA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal layer and a solid ground plane is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat effectively.
  • Implement a soft-start circuit to limit the inrush current during start-up. For shutdown, ensure a controlled shutdown sequence to prevent voltage spikes and oscillations.
  • Use low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. For the output, use capacitors with a voltage rating of at least 1.5 times the maximum output voltage.
  • Implement overcurrent protection (OCP) and overvoltage protection (OVP) circuits to prevent damage to the converter. OCP can be achieved using a current sense resistor and a comparator, while OVP can be achieved using a voltage sense resistor and a comparator.
  • For high-power applications, forced air cooling using a fan or a blower is recommended. Ensure that the airflow is directed towards the heat sink to maximize heat dissipation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S24SE15001PDFA Overview

Use the download button to access the S24SE15001PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SE, or try a keyword search, such as Power Supply Modules
