A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start circuit to limit the inrush current and ensuring the input voltage is stable before enabling the converter.
Operating the converter in a high-temperature environment can reduce its reliability and lifespan. It's essential to ensure the device operates within its specified temperature range (–40°C to +85°C) and to provide adequate cooling to prevent overheating.
To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback circuitry. Ensure the input voltage is within the specified range, the output load is within the recommended range, and the feedback circuitry is properly connected and configured.
The S24SE15002PDFA is designed to meet CISPR 22 Class B EMI standards. To ensure EMI compliance, follow good PCB design practices, use a metal enclosure, and add EMI filters as needed. Additionally, ensure the converter is installed in a way that minimizes electromagnetic radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SE15002PDFA Overview

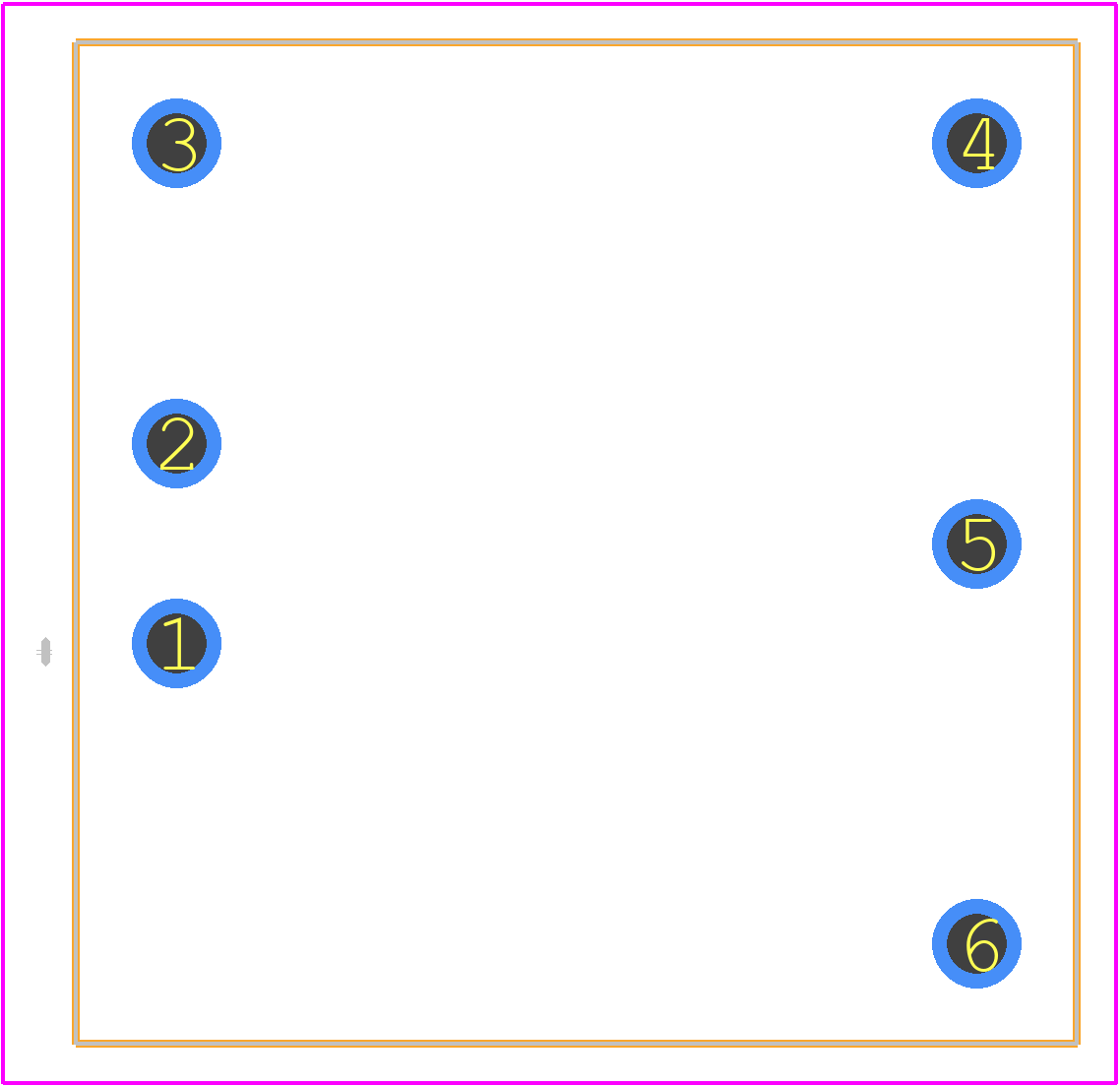

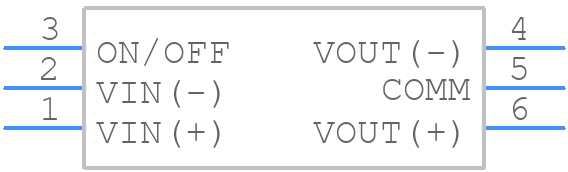

Use the download button to access the S24SE15002PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SE,
or try a keyword search, such as Power Supply Modules
