S24SE3R303PDFA - Delta Electronics

Description: Isolated DC/DC Converters DC/DC Converter, +3.3Vout, 10W

Download S24SE3R303PDFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

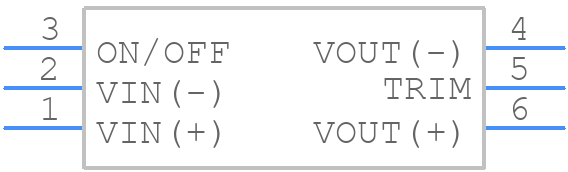

S24SE3R303PDFA - Delta Electronics - PCB symbol
click to zoom
PCB Footprints

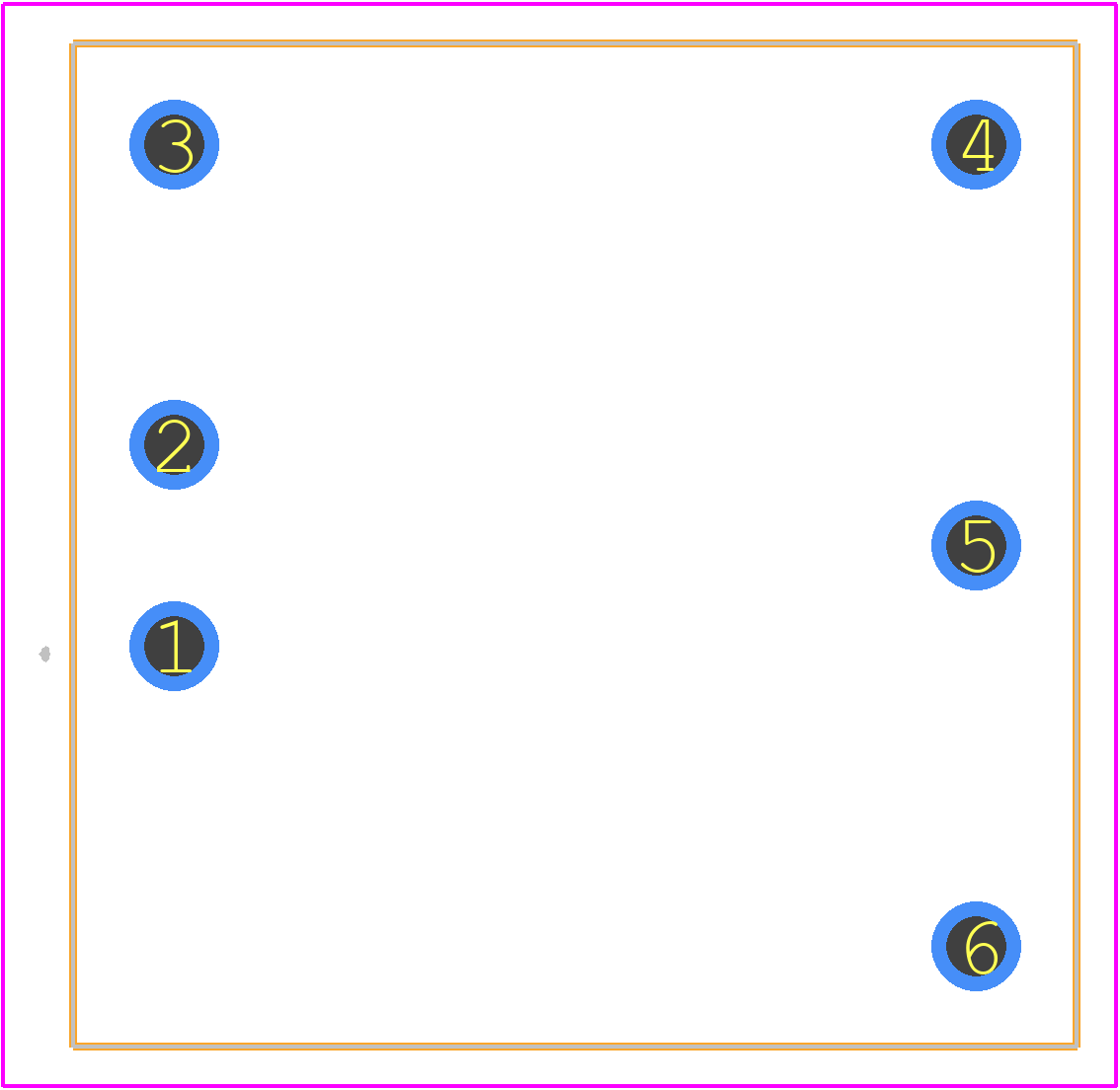

S24SE3R303PDFA - Delta Electronics PCB footprint - Other - Other - S24SE3R303PDFA-2
click to zoom
3D Models
S24SE3R303PDFA - Delta Electronics - 3D model - Other - S24SE3R303PDFA-2
click to zoom

S24SE3R303PDFA Details

  • Manufacturer Part Number:

    S24SE3R303PDFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    25.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    82 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.63 V

  • Output Voltage-Min:

    2.97 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    9.9 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

S24SE3R303PDFA Frequently Asked Questions (FAQs)

  • Delta Electronics recommends a PCB layout with a solid ground plane, thermal vias, and a heat sink attached to the top of the device to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure proper airflow, and consider using a heat sink or thermal management system.
  • Delta Electronics recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output filters. The specific capacitor values may vary depending on the application and operating conditions.
  • Yes, the S24SE3R303PDFA can be used in a redundant or parallel configuration, but it's essential to follow Delta Electronics' guidelines and recommendations for synchronization and current sharing to ensure reliable operation.
  • The typical efficiency of the S24SE3R303PDFA is around 92-95% depending on the input voltage, output voltage, and load conditions. Please refer to the datasheet for detailed efficiency curves.
