S24SP05012PDFA - Delta Electronics

Description: Isolated DC/DC Converters DC/DC Converter, +5Vout, 60W

Download S24SP05012PDFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S24SP05012PDFA - Delta Electronics - PCB symbol
click to zoom
PCB Footprints

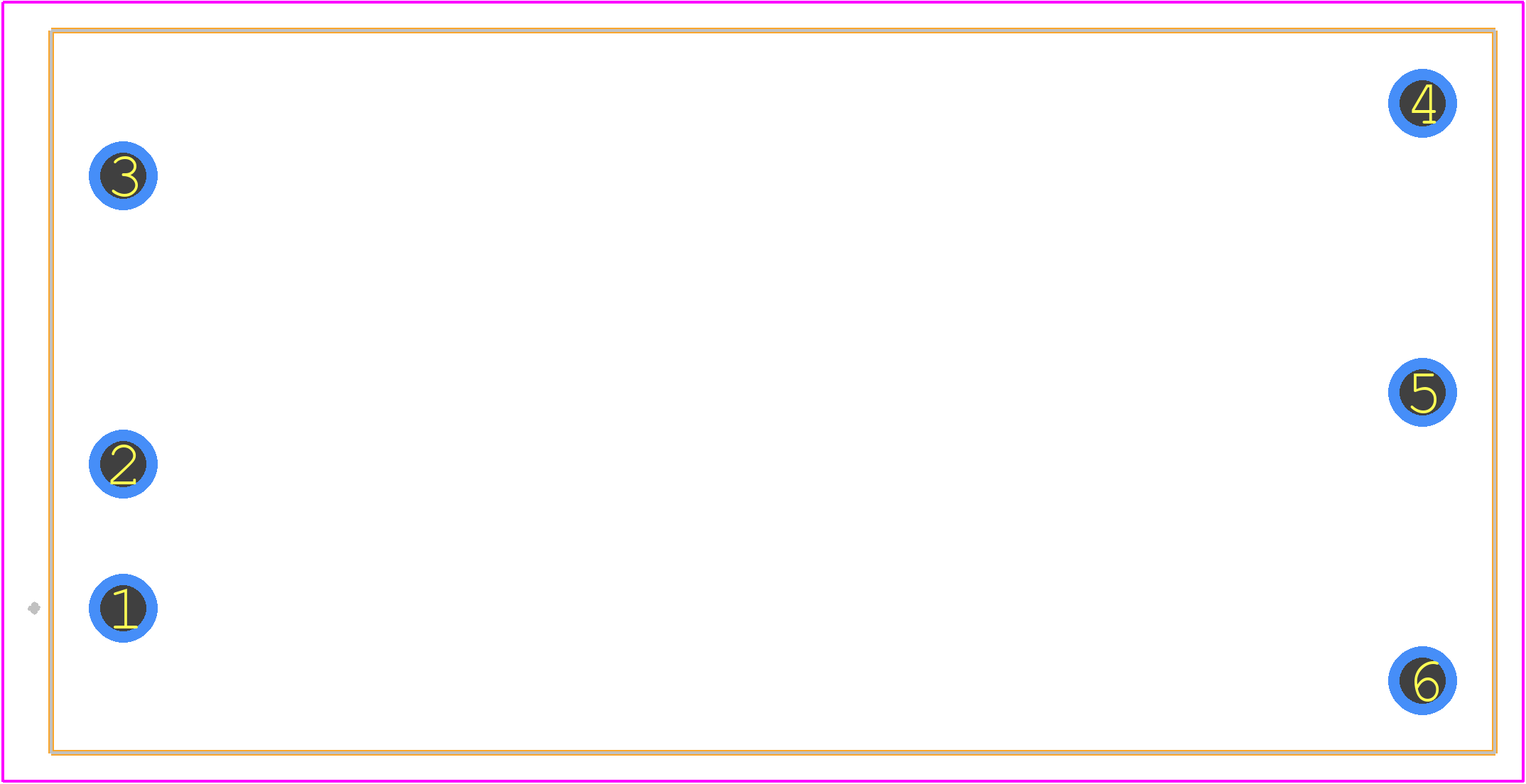

S24SP05012PDFA - Delta Electronics PCB footprint - Other - Other - S24SP05008PDFA
click to zoom
3D Models
S24SP05012PDFA - Delta Electronics - 3D model - Other - S24SP05008PDFA
click to zoom

S24SP05012PDFA Details

  • Manufacturer Part Number:

    S24SP05012PDFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    50.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    60 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

S24SP05012PDFA Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The PCB should have a thermal relief pattern under the module to ensure good heat transfer.
  • Ensure that the input voltage is within the specified range, and the input capacitance is sufficient to handle the inrush current. Also, ensure that the output voltage is not pre-biased before applying input power.
  • The maximum allowable output capacitance is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • The power supply is rated for operation up to 80°C ambient temperature. However, derating may be necessary for high-temperature applications. Consult the datasheet for derating curves.
  • The power supply has built-in overcurrent protection. However, if additional protection is required, an external current sense resistor and a comparator can be used to detect overcurrent conditions.
