A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliable start-up and shutdown, it's essential to follow the recommended start-up and shutdown sequences outlined in the datasheet. Additionally, ensure that the input voltage is within the specified range, and the output voltage is properly decoupled to prevent voltage spikes.
Operating the converter at high altitudes can affect its performance and reliability. The datasheet provides derating curves for high-altitude operation. It's essential to consult these curves and ensure the converter is operated within its specified derating limits to prevent overheating and reduced performance.
To troubleshoot common issues, follow a systematic approach: 1) Verify the input voltage and current, 2) Check the output voltage and current, 3) Verify the thermal design and cooling, 4) Check for any signs of physical damage or wear, and 5) Consult the datasheet and application notes for troubleshooting guides.
The S24SP12004PDFA is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To ensure EMI and EMC compliance, follow proper PCB layout and shielding practices, use recommended filter components, and consult the datasheet and application notes for EMI and EMC guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SP12004PDFA Overview

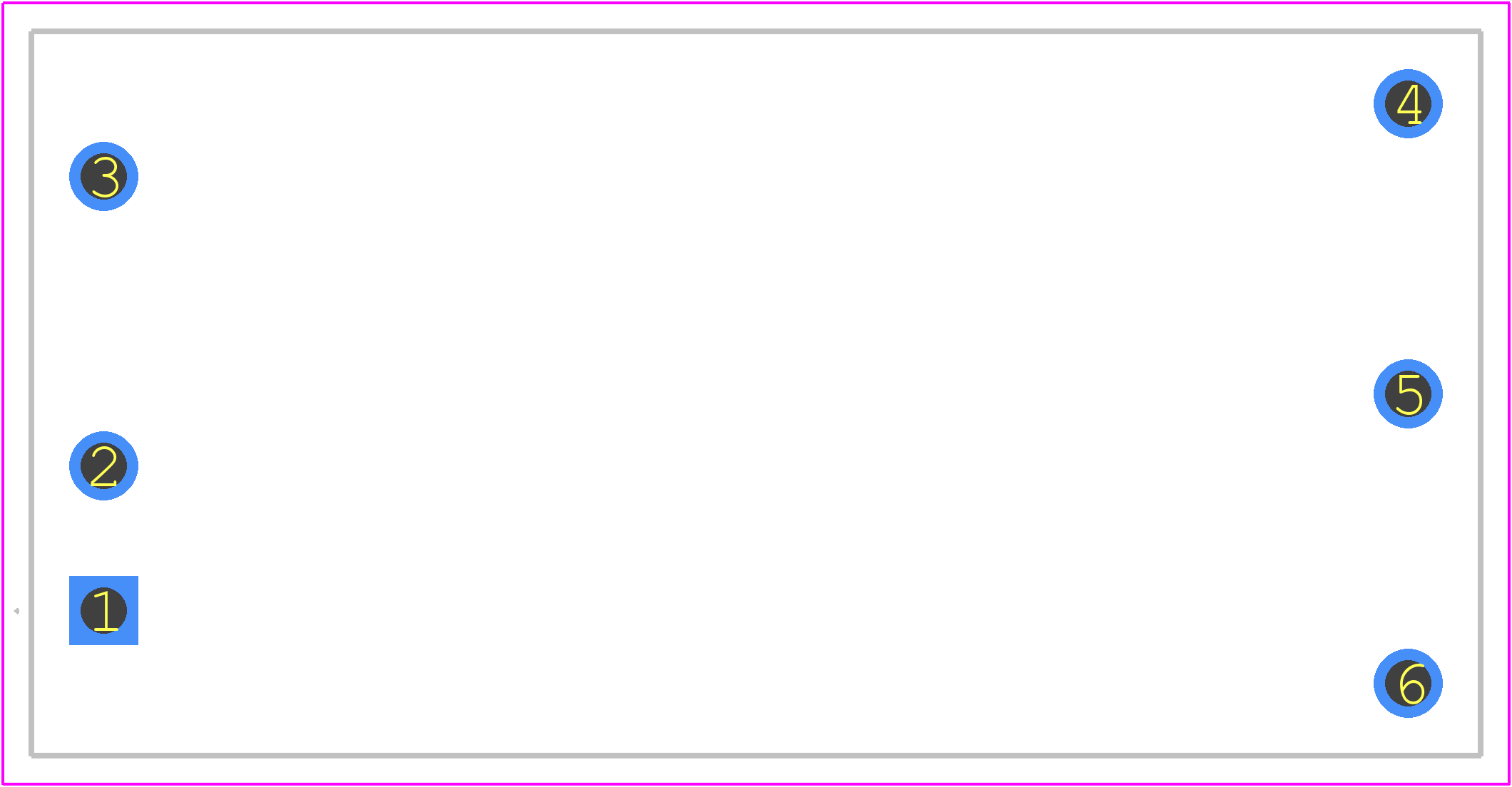

Use the download button to access the S24SP12004PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SP,
or try a keyword search, such as Power Supply Modules
