A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using the correct timing and voltage sequencing to prevent damage to the device.
Operating the converter in a high-temperature environment can reduce its lifespan and affect its performance. It's essential to ensure good airflow and heat dissipation to keep the device within its specified temperature range. Derating the output power or using a heat sink may be necessary in high-temperature environments.
To troubleshoot common issues, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input voltage is within the specified range. Check for signs of overheating, such as excessive temperature or reduced output power. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The S24SP15003PDFA is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To ensure EMI and EMC compliance, follow the recommended PCB layout and shielding guidelines, and use appropriate filtering and shielding components. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S24SP15003PDFA Overview

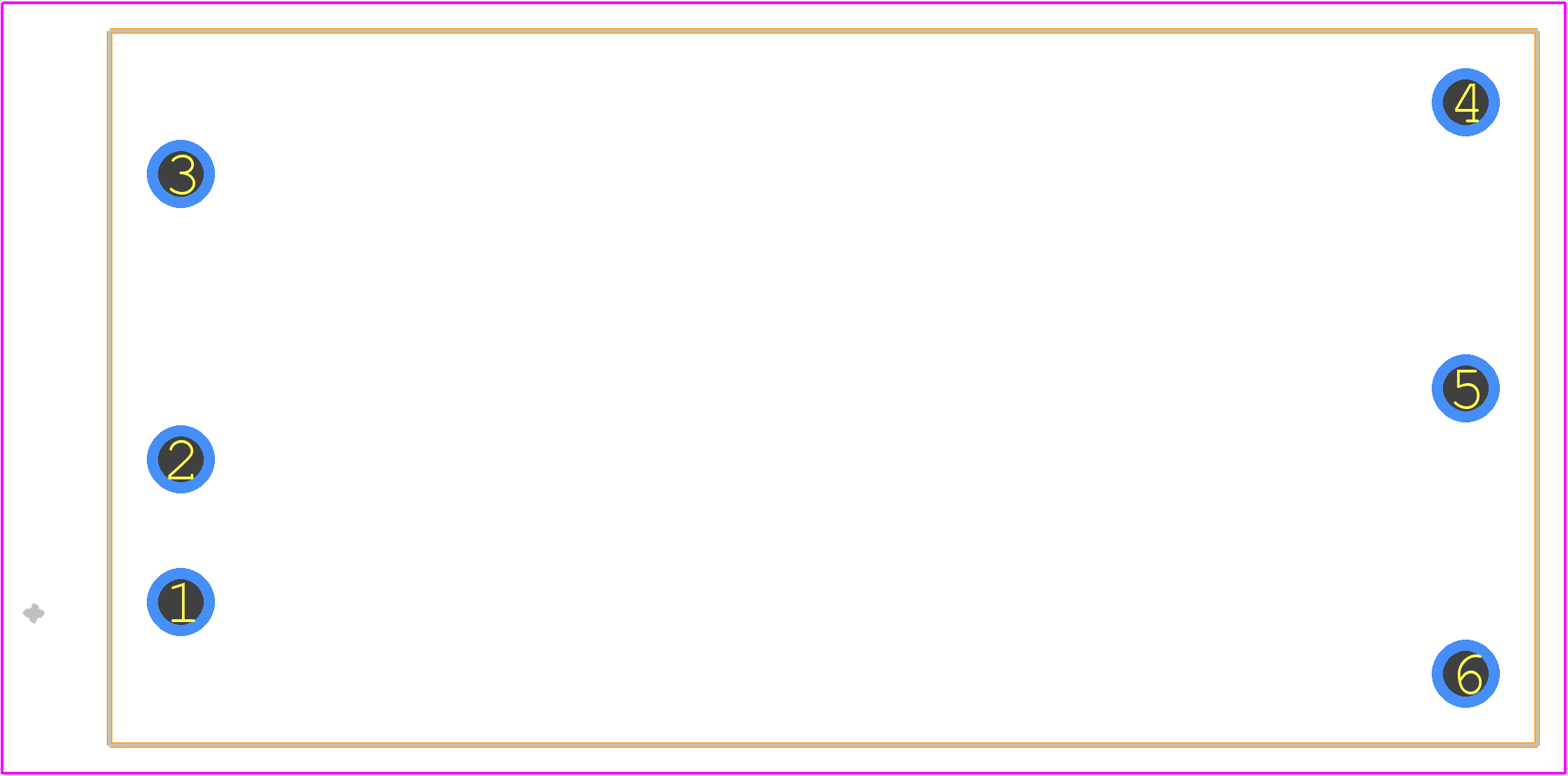

Use the download button to access the S24SP15003PDFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S24SP,
or try a keyword search, such as Power Supply Modules
