S24SP24002PDFA - Delta Electronics

Description: Isolated DC/DC Converters DC/DC Converter, +24Vout, 40W

Download S24SP24002PDFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

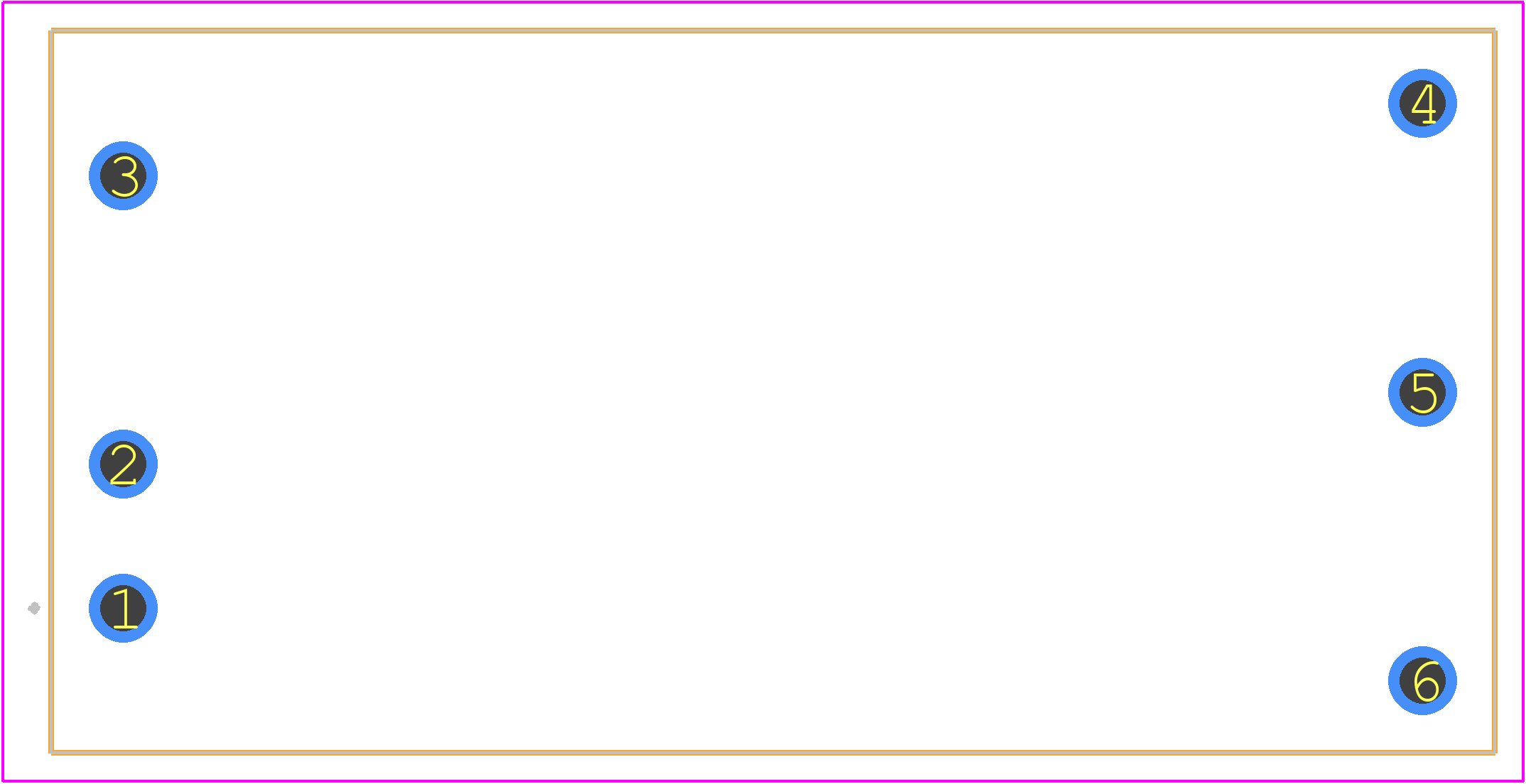

S24SP24002PDFA - Delta Electronics PCB footprint - Other - Other - S24SP05008PDFA
click to zoom
3D Models
S24SP24002PDFA - Delta Electronics  - 3D model - Other - S24SP05008PDFA
click to zoom

S24SP24002PDFA Details

  • Manufacturer Part Number:

    S24SP24002PDFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    50.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    77 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    21.6 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    40 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

S24SP24002PDFA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The thermal pad should be connected to the ground plane through multiple thermal vias to ensure efficient heat dissipation.
  • To ensure reliable start-up, a soft-start circuit can be implemented to limit the inrush current. Additionally, a voltage supervisor can be used to monitor the input voltage and ensure that the converter starts up only when the input voltage is within the specified range.
  • The maximum capacitance value that can be used on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • To troubleshoot issues with the output voltage regulation, check the input voltage, output voltage, and feedback voltage. Verify that the feedback pin is properly connected and that the output voltage is within the specified range. Also, check for any signs of overheating or component failure.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation.
