The S25FL032K0XMFI011 has a minimum of 100,000 erase cycles per sector, and a minimum of 10,000 erase cycles per block.
The HOLD# pin should be driven high during low power modes to prevent the device from responding to external inputs. This ensures that the device remains in a low power state.
The recommended method is to use the RY/BY# pin, which goes low during a program or erase operation and returns high when the operation is complete. Alternatively, the device can be polled using the ENDOFOP command.
Yes, the S25FL032K0XMFI011 is compatible with 1.8V power supplies. However, the device's performance and reliability may be affected at lower voltages, so it's essential to consult the datasheet for specific voltage and timing requirements.
The WP# pin should be driven high during normal operation to enable write operations. If the WP# pin is driven low, the device will be in a hardware-protected state, and write operations will be inhibited.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
S25FL032K0XMFI011 Overview

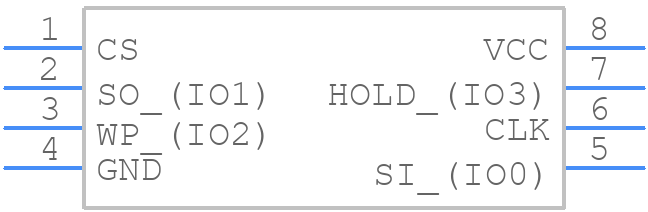

Use the download button to access the S25FL032K0XMFI011 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL,
or try a keyword search, such as Flash Memories
