Part Image

S25FL032P0XMFA013 - Infineon

Description: NOR Flash Nor

Download S25FL032P0XMFA013 Model

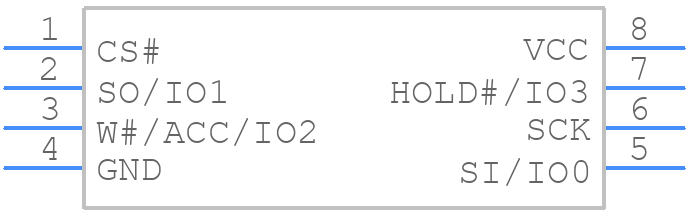

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL032P0XMFA013 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - S25FL116K0XMFI040
click to zoom
3D Models
S25FL032P0XMFA013 - Infineon  - 3D model - Small Outline Packages - S25FL116K0XMFI040
click to zoom

S25FL032P0XMFA013 Details

  • Manufacturer Part Number:

    S25FL032P0XMFA013

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.28 mm

S25FL032P0XMFA013 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL032P0XMFA013 is 104 MHz.
  • The S25FL032P0XMFA013 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The S25FL032P0XMFA013 has a data retention period of at least 20 years at a temperature of 25°C.
  • Yes, the S25FL032P0XMFA013 is compatible with the SPI protocol, as well as other protocols such as Dual SPI and Quad SPI.
  • The S25FL032P0XMFA013 comes in a 16-pin SOIC package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL032P0XMFA013 Overview

Use the download button to access the S25FL032P0XMFA013 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
