S25FL064LABBHI020 - Infineon

Description: Cypress Semiconductor NOR 64Mbit Flash Memory 24-Pin BGA, S25FL064LABBHI020

Download S25FL064LABBHI020 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL064LABBHI020 model

Email notifications will be applied after download.

Send part feedback

Symbol

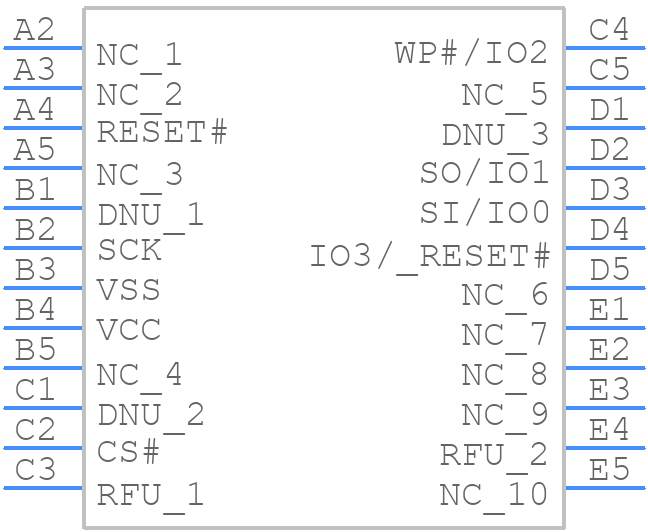

S25FL064LABBHI020 - Infineon - PCB symbol

PCB Footprints

S25FL064LABBHI020 - Infineon PCB footprint - BGA - BGA - 24-ball FBGA 8.0 x 6.0 X 1.2 mm (ZSA024)

3D Models

S25FL064LABBHI020 - Infineon - 3D model - BGA - 24-ball FBGA 8.0 x 6.0 X 1.2 mm (ZSA024)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL064LABBHI020
Part Number S25FL064LABBHI020
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-ball FBGA 8.0 x 6.0 X 1.2 mm (ZSA024)
Released Date Apr 9, 2024
Last Modified Date Apr 9, 2024 4:09 AM UTC
Pinout / Pin List Click Here (Member Only)

S25FL064LABBHI020 Details

Manufacturer Part Number:
S25FL064LABBHI020
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

S25FL064LABBHI020 Overview

Use the download button to access the S25FL064LABBHI020 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
