S25FL064LABBHI030 - Infineon

Description: CYPRESS SEMICONDUCTOR - S25FL064LABBHI030 - FLASH MEMORY, 64MBIT, BGA-24

Download S25FL064LABBHI030 Model

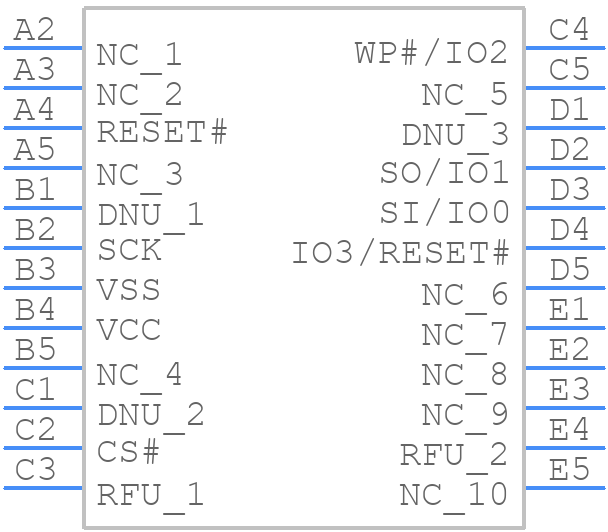

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL064LABBHI030 - Infineon PCB footprint - BGA - BGA - 24-Ball 6x8 mm (FAB024)
click to zoom
3D Models
S25FL064LABBHI030 - Infineon  - 3D model - BGA - 24-Ball 6x8 mm (FAB024)
click to zoom

S25FL064LABBHI030 Details

  • Manufacturer Part Number:

    S25FL064LABBHI030

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO HAVE X1 MEMORY WIDTH

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000055 A

  • Supply Current-Max:

    0.000029999999999999997 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FL064LABBHI030 Frequently Asked Questions (FAQs)

  • The S25FL064LABBHI030 can operate from -40°C to +125°C, with a typical operating temperature range of -25°C to +85°C.
  • The S25FL064LABBHI030 can handle up to 100,000 erase cycles per sector, with a minimum of 10,000 erase cycles guaranteed.
  • The typical programming time for the S25FL064LABBHI030 is 1.5 ms per page (256 bytes), with a maximum programming time of 3 ms per page.
  • Yes, the S25FL064LABBHI030 is suitable for use in MCP or SiP designs, but it's essential to ensure that the package and PCB design meet the thermal and electrical requirements specified in the datasheet.
  • The S25FL064LABBHI030 has an internal POR and BOD circuitry that ensures the device resets correctly during power-up and power-down sequences, and detects brown-out conditions to prevent data corruption.
