S25FL064LABMFI010 - Infineon

Description: Cypress Semiconductor, S25FL064LABMFI010

Download S25FL064LABMFI010 Model

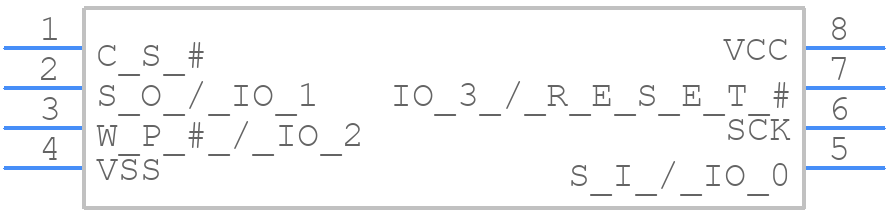

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL064LABMFI010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - S25FL064LABMFN010
click to zoom
3D Models
S25FL064LABMFI010 - Infineon  - 3D model - Small Outline Packages - S25FL064LABMFN010
click to zoom

S25FL064LABMFI010 Details

  • Manufacturer Part Number:

    S25FL064LABMFI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAVE X1 MEMORY WIDTH

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    108 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.28 mm

S25FL064LABMFI010 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL064LABMFI010 is 104 MHz.
  • The S25FL064LABMFI010 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The S25FL064LABMFI010 has a data retention period of at least 20 years at a temperature of 25°C.
  • Yes, the S25FL064LABMFI010 is compatible with the SPI protocol, as well as other protocols such as Dual SPI and Quad SPI.
  • The S25FL064LABMFI010 comes in a WFVBGA24 (6x8mm) package.
