S25FL064LABNFI041 - Infineon

Description: Cypress Semiconductor S25FL064LABNFI041 NOR 64Mbit Flash Memory Chip, 8-Pin USON

Download S25FL064LABNFI041 Model

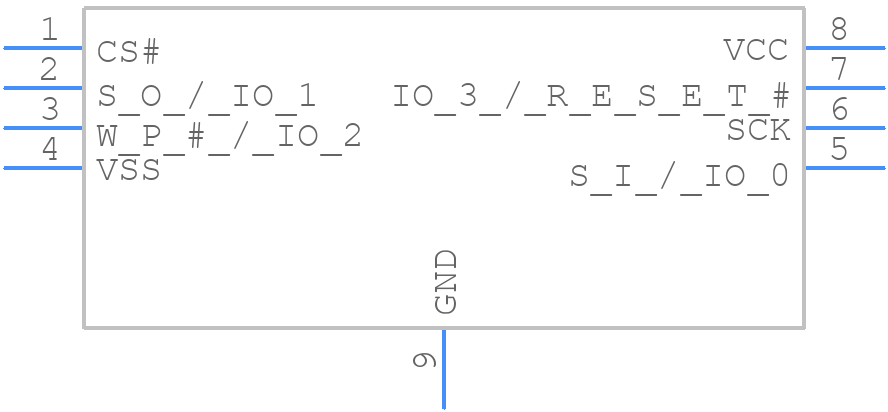

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL064LABNFI041 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - S25FL064LABNFI041
click to zoom
3D Models
S25FL064LABNFI041 - Infineon  - 3D model - Small Outline No-lead - S25FL064LABNFI041
click to zoom

S25FL064LABNFI041 Details

  • Manufacturer Part Number:

    S25FL064LABNFI041

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    1

  • Additional Feature:

    IT IS ALSO CONFIGURED AS 64M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    108 MHz

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm
