S25FL064LABNFM010 - Infineon

Description: NOR Flash IC 64 Mb FLASH MEMORY

Download S25FL064LABNFM010 Model

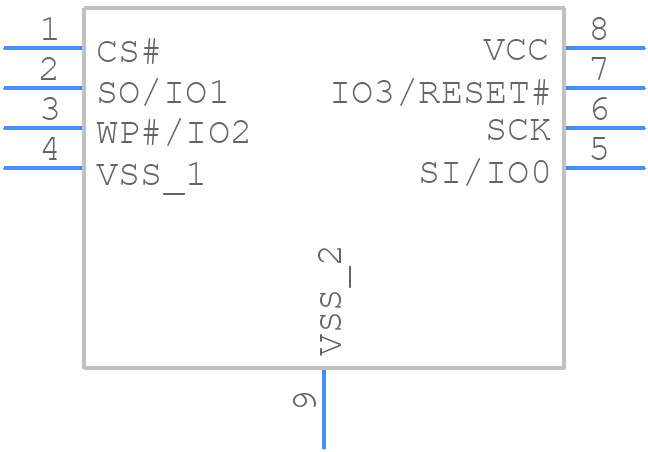

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL064LABNFM010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON 5 x 6 mm (WND008)
click to zoom
3D Models
S25FL064LABNFM010 - Infineon  - 3D model - Small Outline No-lead - WSON 5 x 6 mm (WND008)
click to zoom

S25FL064LABNFM010 Details

  • Manufacturer Part Number:

    S25FL064LABNFM010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAVE X1 MEMORY WIDTH

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    108 MHz

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

S25FL064LABNFM010 Frequently Asked Questions (FAQs)

  • The S25FL064LABNFM010 can operate from -40°C to +125°C, with a typical operating temperature range of -25°C to +85°C.
  • The HOLD# pin should be driven low during read and write operations to prevent the device from entering a low-power state. If the HOLD# pin is driven high, the device will enter a low-power state and all operations will be suspended.
  • The recommended clock frequency for the S25FL064LABNFM010 is up to 104 MHz, but it can operate at frequencies up to 133 MHz with some limitations.
  • The write protection mechanism can be enabled or disabled using the Write Protection (WP#) pin. When WP# is driven low, the device is write-protected, and when WP# is driven high, the device is not write-protected.
  • The S25FL064LABNFM010 has an erase cycle endurance of 100,000 cycles, with a typical data retention of 20 years.
