S25FL116K0XNFV013 - Infineon

Description: 16-Mbit (2 Mbyte)/32-Mbit (4 Mbyte)/64-Mbit (8 Mbyte), 3.0 V, SPI Flash Memory

Download S25FL116K0XNFV013 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL116K0XNFV013 model

Email notifications will be applied after download.

Send part feedback

Symbol

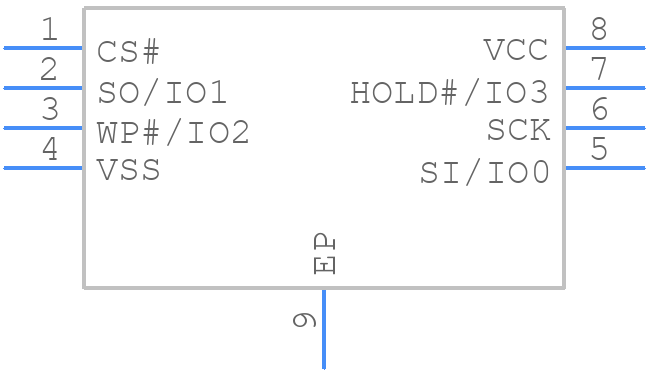

S25FL116K0XNFV013 - Infineon - PCB symbol

PCB Footprints

S25FL116K0XNFV013 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON 5 x 6 mm (WND008)

3D Models

S25FL116K0XNFV013 - Infineon - 3D model - Small Outline No-lead - WSON 5 x 6 mm (WND008)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL116K0XNFV013
Part Number S25FL116K0XNFV013
Manufacturer Infineon
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - WSON 5 x 6 mm (WND008)
Released Date Sep 29, 2017
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FL116K0XNFV013 Details

Manufacturer Part Number:
S25FL116K0XNFV013
Part Life Cycle Code:
Obsolete
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Memory IC Type:
FLASH
Programming Voltage:
3 V
