Part Image

S25FL127SABMFI101 - Infineon

Description: Flash,128Mbit,QSPI,108MHz,3V,SOIC8 S25FL127SABMFI101, SPI NOR Flash Memory, 128M x 1 bit, 32M x 4 bit, 64M x 2 bit 128Mbit, 2.7 → 3.6 V, 8-Pin

Download S25FL127SABMFI101 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL127SABMFI101 model

Email notifications will be applied after download.

Send part feedback

Symbol

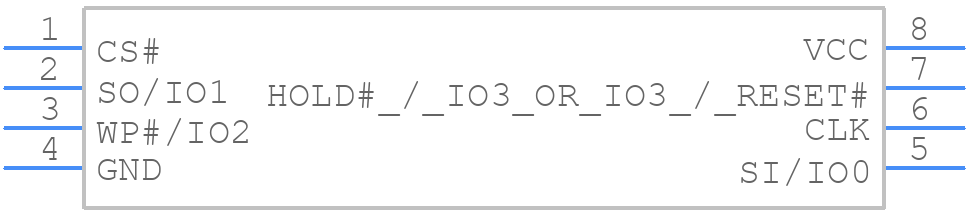

S25FL127SABMFI101 - Infineon - PCB symbol

PCB Footprints

S25FL127SABMFI101 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)

3D Models

S25FL127SABMFI101 - Infineon - 3D model - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL127SABMFI101
Part Number S25FL127SABMFI101
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)
Released Date Mar 17, 2017
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FL127SABMFI101 Details

Manufacturer Part Number:
S25FL127SABMFI101
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

S25FL127SABMFI101 Overview

Use the download button to access the S25FL127SABMFI101 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
