S25FL127SABMFV100 - Infineon

Description: S25FL127S - (16 MB) 3.0 V SPI Flash Memory (Status: Active)

Download S25FL127SABMFV100 Model

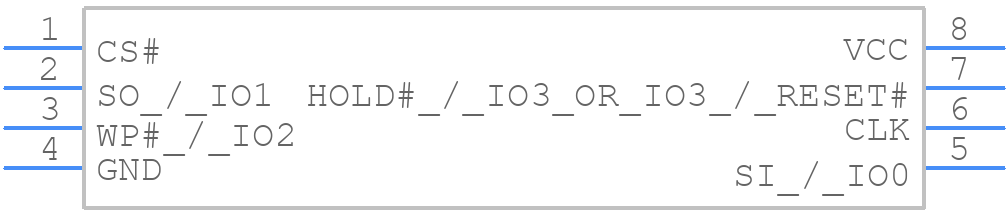

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL127SABMFV100 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8-Lead
click to zoom
3D Models
S25FL127SABMFV100 - Infineon  - 3D model - Small Outline Packages - SOIC 8-Lead
click to zoom

S25FL127SABMFV100 Details

  • Manufacturer Part Number:

    S25FL127SABMFV100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Alternate Memory Width:

    4

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.0003 A

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.28 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FL127SABMFV100 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S25FL127SABMFV100 is 2.7V to 3.6V.
  • The HOLD# pin should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The WP# pin is a write-protect pin that prevents writes to the entire memory array when pulled low. It should be tied high or left floating to allow normal write operations.
  • The optimal clock frequency depends on the specific application requirements. The S25FL127SABMFV100 supports clock frequencies up to 104 MHz, but the actual frequency used should be determined by the system's timing requirements and noise tolerance.
  • The S25FL127SABMFV100 is a 128 Mbit flash memory device with a specific feature set, including a 104 MHz clock frequency, 25 ns access time, and a 1.8V to 3.6V operating voltage range. Other similar devices may have different features, such as different densities, access times, or operating voltage ranges.
