S25FL128LAGMFM010 - Infineon

Description: NOR Flash 128Mb 133MHz SDR AEC-Q100

Download S25FL128LAGMFM010 Model

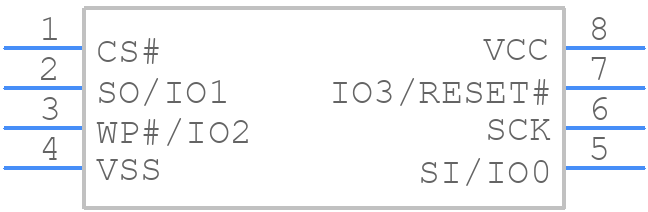

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL128LAGMFM010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)
click to zoom
3D Models
S25FL128LAGMFM010 - Infineon  - 3D model - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)
click to zoom

S25FL128LAGMFM010 Details

  • Manufacturer Part Number:

    S25FL128LAGMFM010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    5.28 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.28 mm

  • Write Protection:

    HARDWARE

S25FL128LAGMFM010 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL128LAGMFM010 is 104 MHz.
  • The S25FL128LAGMFM010 can withstand up to 100,000 erase cycles.
  • The data retention period of the S25FL128LAGMFM010 is 20 years at 25°C.
  • Yes, the S25FL128LAGMFM010 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
  • The S25FL128LAGMFM010 comes in a 24-ball BGA package.
