S25FL128SAGBHIA10 - Infineon

Description: NOR Flash 128Mb 3V 133MHz Serial NOR Flash

Download S25FL128SAGBHIA10 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL128SAGBHIA10 model

Email notifications will be applied after download.

Send part feedback

Symbol

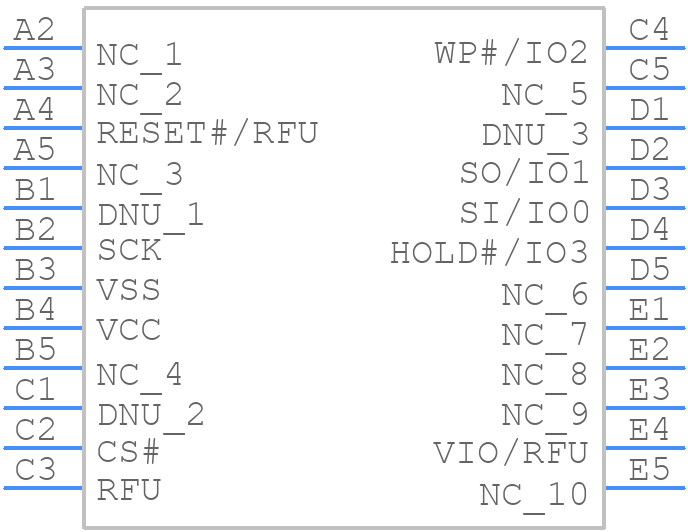

S25FL128SAGBHIA10 - Infineon - PCB symbol

PCB Footprints

S25FL128SAGBHIA10 - Infineon PCB footprint - BGA - BGA - 24-Ball 6x8 mm (FAB024)

3D Models

S25FL128SAGBHIA10 - Infineon - 3D model - BGA - 24-Ball 6x8 mm (FAB024)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL128SAGBHIA10
Part Number S25FL128SAGBHIA10
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-Ball 6x8 mm (FAB024)
Released Date Dec 17, 2019
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FL128SAGBHIA10 Details

Manufacturer Part Number:
S25FL128SAGBHIA10
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

S25FL128SAGBHIA10 Overview

Use the download button to access the S25FL128SAGBHIA10 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
